Zebra – MC3300x Mobile Computer
The Zebra MC3300x Mobile Computer is the next evolution of the highly successful MC3000 series, designed to tackle the increasing demands of today’s on-demand, e-commerce-driven economy. Combining a proven ergonomic design with the latest Android architecture, the MC3300x offers superior data capture capabilities, an extended range scanning option, and a robust 7000 mAh battery for power across multiple shifts. Its rugged build, featuring Gorilla Glass and IP64 dustproof sealing, ensures durability. Whether on the manufacturing floor or in a warehouse, the MC3300x enhances workforce productivity with its versatile touch and keypad input options.
Specification
- Processor: 2.2 GHz octa-core Qualcomm Snapdragon 660
- Memory: 4 GB RAM, 32 GB Flash (Worldwide); 4 GB RAM, 16 GB Flash (China)
- Operating System: Android 10, upgradable to Android 12
- Battery: 7000 mAh PowerPrecision+ battery with hot swap support
- Display: 4inch WVGA (800 x 480), LED backlight
- Connectivity: Wi-Fi (802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc), Bluetooth 5.0
- Drop: Specification: Multiple 6 ft. drops to concrete across operating temperature range
- Tumble Specification: 3,000 3.3 ft. tumbles
- Sealing: IP64 dustproof sealing
- Scanning Options: SE965 1D, SE4720/SE4770 2D, SE4850 extended range
- Camera: Optional 13 MP rear-facing color camera with LED flash
- Dimensions: Various configurations (e.g., 7.96 in. L x 2.94 in. W x 35 in. D for the 0 scan model)
- Weight: From 15.7 oz. (Straight Shooter) to 18.4 oz. (Gun/Pistol)
Benefits
With a 6 ft. drop specification and IP64 sealing, the MC3300x is built to withstand harsh environments. The Corning Gorilla Glass ensures the touch panel and scan window are protected from regular wear and tear.
Powered by a 2.2 GHz octa-core processor and equipped with a 7000 mAh battery, the MC3300x handles demanding applications effortlessly and provides power for up to three shifts, reducing downtime and operational costs.
The MC3300x offers multiple scanning options, from short to long-range 1D/2D scanning, ensuring all barcode capture needs are met. Its optional 13 MP camera allows for high-resolution photo and video documentation, enhancing operational efficiency.
Related Products
The ID SPAD.U is a shielded UHF desktop reader with integrated antennas, designed for contactless data exchange with UHF transponders. With its flat and modern design, it offers maximum reliability and excellent reading performance. It is suitable for various markets, including laundries, libraries, and retail, and can be used for applications such as laundry logistics, library item tracking, and file/document tracking.
- Dimensions: 376 mm x 276 mm x 26.8 mm
- Weight: approximately 2.0 kg
- Housing: Upper part – Plastic ABS, Cover plate – Acrylic glass (PMMA XT), Lower part – Galvanized metal sheet
- Protection class: IP30
- Power supply: 12 to 24 V DC ±15%
- Power consumption: max. 7 VA
- Operating frequency: 865 MHz to 868 MHz
- Transmitting power: 50 mW to 500 mW, configurable in up to 8 steps
- Interface: USB
- Reader modes: ISO Host Mode, Buffered Read Mode, Scan Mode
- Supported transponders: EPC Class1 Gen2, ISO 18000-6-C (optional)
- Indicators: LED green, red, orange (mixed color), Buzzer
- Temperature range: Operation -25 degree C to +55 degree C, Storage -25 degree C to +70 degree C
- Relative humidity: 5% to 95% (non-condensing)
- Radio approval: Europe – EN 302 208, EMC – EN 301 489
- Safety: Low Voltage – EN 62368-1, Human Exposure – EN 50364
The ID RWA40.30-USB is a versatile desktop reader designed for contactless data exchange with common 125 kHz transponders. It is suitable for various office, administration, and industrial applications. With its USB interface, it allows for easy power supply and data exchange with a computer or other equipment. The reader has its own local intelligence, enabling both online and offline operation.
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 125 kHz
- MTBF: 500,000 h
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Optical indicators: 2 LED (Green: Power and online/offline Blue: Transponder communication)
- Operation mode: Polling-Mode
- Supported transponders: 125 kHz Read Only transponders, 125 kHz Read / Write transponders
- USB CDC device driver: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Vista 32 Bit
- EEPROM: 512 Byte (1 x 106 write cycles)
- FLASH: 128 Byte (firmware update in application possible)
- Temperature range: Operation: -20 degree C up to +60 degree C, Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)
The UHF Mid-Range Antenna ID ANT.U150/150 by FEIG ELECTRONIC GmbH is a robust, compact, and aesthetically pleasing antenna designed for a variety of demanding environments. With a circular polarization that ensures optimal performance and reliable read ranges up to 4 meters, this antenna is ideal for logistics, industrial applications, railway systems, waste management, and retail inventory tracking. Its IP68 protection class makes it suitable for permanent outdoor use, even in harsh industrial settings. The ID ANT.U150/150 features a VESA100 standard mounting for easy installation and is compatible with multiple FEIG UHF readers, making it a versatile solution for efficient asset tracking and inventory management.
- Dimensions: 151 mm x 150 mm x 14.5 mm
- Weight: 230 g
- Housing: ABS, UV resistant, and fire-retardant
- Protection Class: IP68
- Gain: Approximately 5 dBic
- 3 dB Beam Width: 105 x 105
- Polarization: Circular (RHCP)
- Antenna Connector: SMA (female)
- Operating Frequencies:
EU Variant: 865 Mz – 868 MHz
FCC Variant: 902 MHz – 928 MHz
The ID ANT40/30 and ID ANT100/100 are HF antennas designed for RFID proximity readers. They have an impedance of 50 ohm and operate at a frequency of 13.56 MHz. The antennas have a maximum transmitting power of 1 W and a data transfer rate of up to 424 kbits/s. The ID ANT100/100 has a reading distance of up to 14 cm. These antennas are suitable for applications such as eTicketing, eMobility, and Closed Loop Payment.
- Dimensions: ID ANT40/30 – 40 mm x 30 mm, ID ANT100/100 – 100 mm x 100 mm
- Interface: 2-pin connector or U.FL connector option
- Operating frequency: 13.56 MHz
- Impedance: 50 ohm
- Max. transmitting power: 1 W
- Max. reading distance: ID ANT40/30 – up to 7 cm, ID ANT100/100 – up to 14 cm
- Data transfer rate: ID ANT40/30 – up to 424 kbit/s, ID ANT100/100 – up to 212 kbit/s
- Power supply: Unneeded
- Temperature range: Operation -25 degree C up to +70 degree C, Storage -40degree C up to +85 degree C
- Relative air humidity: 0% up to 95% (non-condensing)

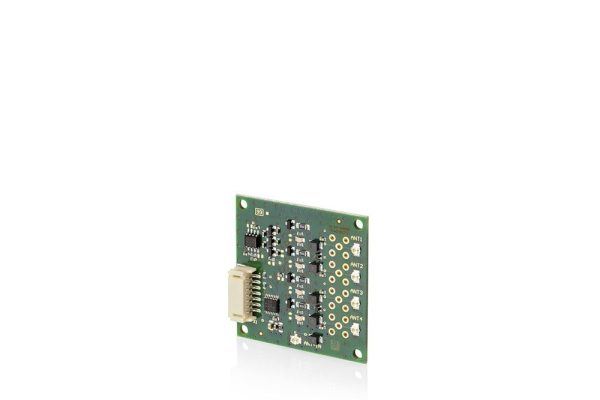

The 4 Channel Antenna Multiplexer (ID CPR.ANT.MUX-M4) is a device that allows the connection of up to 4 external antennas to the reader module ID CPR74. With this multiplexer, it is possible to create up to 5 reading areas by utilizing the internal antenna of the ID CPR74. The control of each active antenna can be easily configured through the CPR74 or via two digital inputs with external control electronics. The multiplexer features non-wearing electronic switching of the outputs and has a high switching speed of less than 1 ms.
- Weight: 12 g
- MTBF (Mean Time Between Failures): 500,000 hours
- Power supply: +5 V DC ± 5%
- Current consumption: Less than 40 mA
- Digital inputs: Low level: 0 -0 V, High level: 3.8 V – VCC, Pull-Down: 10 kohm
- LED: 4 yellow LEDs for indicating active antennas
- Operating frequency: 13.56 MHz
- RF power: Maximum 500 mW
- Reader connection: U.FL connector
- Antenna connection: 4 x U.FL connectors for external antennas
- Temperature range: Operation: -25 degree C up to +70 degree C, Storage: -40degree C up to +85 degree C
- Relative air humidity: Maximum 95% (non-condensing)
- Standard conformity: EMC: EN 301 489, Safety & Health: EN 62368-1, EN 50364, Environment: WEEE-2002/96/EC, RoHS-2011/65/EC
The AT288N by ATID offers unparalleled efficiency in RFID data collection. With its advanced technology, this handheld reader empowers businesses to streamline their inventory management, asset tracking, and supply chain operations with precision and speed. Its ergonomic design ensures comfortable usage, while its robust build guarantees durability in various environments.
Elevate your RFID data collection capabilities with the AT288N by ATID. Engineered to excel in efficiency, this handheld reader revolutionizes inventory management, asset tracking, and supply chain operations. Its cutting-edge technology empowers businesses to capture data with unprecedented speed and accuracy, enhancing overall productivity and decision-making. Designed for user comfort and durability, the AT288N ensures seamless integration into diverse workflows, making it the ultimate solution for optimizing operational efficiency and gaining actionable insights.
- Supported protocols: UHF EPC Gen2, ISO / IEC 18000-6C, 6B, AEI (Rail)
- Connectivity: BT V2.1 + EDR / BLE V4.1
- Compatibility: Windows, Android & iOS Host
- Design: Compact & Handy design
- Drop: spec: 5m (5ft)
- IP65
- Reading Range: ~3M (According to Tag & Environment).
- Battery Life: a 3.7V 2,200mAh Lithium-Ion Battery (Rechargeable).
- Operating Temperature: -10degree C to 45degree C.
- Dimensions: 165mm x 75mm x 29mm
- Weight: 320 grams
