Zebra TC22R Integrated Handheld RFID Reader
The Zebra TC22R is a lightweight, all-in-one mobile computer with integrated UHF RFID and barcode scanning, engineered to simplify inventory management and asset tracking. Built on Android and powered by Zebra’s field-proven technology, it combines exceptional performance with ergonomic design, ensuring fatigue-free all-day use.
With read rates up to 1,300 tags per second and a read range of up to 12.2 m, the TC22R delivers enterprise-grade speed and accuracy in a compact form factor. It features Wi-Fi 6E and Bluetooth 5.2 connectivity, enabling seamless integration across your network for real-time visibility. Ideal for retail, light manufacturing, logistics, and government operations, the TC22R redefines productivity through durability, connectivity, and comfort.
Specification
Performance & System
- Processor: 5430 hexa-core, 2.1 GHz
- Operating System: Android (Zebra supported versions)
- Memory: 6 GB RAM / 64 GB Flash
- Battery: 7,000 mAh Li-Ion PowerPrecision+ (removable, quick-release)
- User Interface: 6.0” FHD+ (1080 × 2160), LED backlight, 450 nits brightness
- Touch Input: Bare or gloved finger operation
- Dimensions: 14.5 × 8.4 × 17.7 cm (5.7” × 3.3” × 6.96”)
- Weight: 569 g (20.07 oz.)
RFID Performance
- Standards: EPC Class 1 Gen 2 / Gen 2 v2
- Engine: Zebra Proprietary Radio Technology
- Read Rate: Up to 1,300 tags/sec
- Read Range: Up to 12.2 m (40 ft.)
- Frequency Range:
- US: 902–928 MHz (0–36 dBm EIRP)
- EU: 865–868 MHz (0–33 dBm ERP)
- Japan: 916–921 MHz (LBT, 0–36 dBm EIRP)
- Antenna Gain: 4 dBi integrated antenna
Data Capture & Connectivity
- Barcode Scanner: SE4710 1D/2D engine
- Camera: 16 MP rear with flash; 5 MP front
- NFC: ISO 14443 A/B, Mifare, FeliCa, ISO 15693, HCE support
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E certified)
- Bluetooth: v5.2 Class 2
- USB: 3.1 Type-C (host/client)
Environmental & Durability
- Operating Temperature: -10 °C to +50 °C
- Storage Temperature: -40 °C to +70 °C
- Humidity: 5–95% (non-condensing)
- Drop Spec: 1.5 m (5 ft.) to concrete
- Tumble Spec: 500 cycles (0.5 m tumbles)
- Sealing: IP65
- ESD: ±15 kV air, ±8 kV contact
Certifications & Compliance
- Wi-Fi Alliance: Wi-Fi 6E, WPA2/WPA3, Voice-Enterprise, Passpoint
- EMC: FCC Part 15 Class B, EN 55032, EN 55035
- Safety: IEC/UL 62368-1
- Environmental: RoHS compliant
Benefits
Lightweight construction and ergonomic grip reduce user fatigue while PowerPrecision+ battery ensures uninterrupted operation.
Achieves industry-leading 1,300 tags per second with long 12.2 m range in a sleek, one-piece design for effortless mobile use.
Supports Wi-Fi 6E, Bluetooth 5.2, and Android MDM integration for smooth, secure, and easily managed enterprise deployment.
Related Products
The ID ANT.U280/210 is a versatile UHF flat-panel antenna, engineered for peak performance in compact spaces. With a height of just 8mm, this ultra-flat antenna delivers a robust reading range of up to 4 meters, making it ideal for Smart Shelf applications and environments with limited installation space. Its circular polarization ensures optimal performance, while integrated mounting holes allow for easy installation on any flat surface. The ID ANT.U280/210 is constructed from durable, fire-retardant ABS material and features an IP54 protection rating, ensuring reliable operation in various industrial, production, and retail environments. Compatible with several FEIG UHF readers, this antenna is designed to meet the demanding requirements of modern RFID applications.
- Dimensions: 275 mm x 214 mm x 8 mm
- Weight: 500 g
- Housing: ABS, fire-retardant
- Color: Black
- Protection Class: IP54
- Gain: Approx. 5 dBic
- 3 dB Beam Width: 60 x 80
- Polarization: Circular (RHCP)
- Antenna Connector: SMA (female)
- Operating Frequencies:
- EU Variant: 865 MHz – 868 MHz
- FCC Variant: 902 MHz – 928 MHz
- Temperature Range:
- Operation:-20 degree C to +55 degree C
- Storage:-30 degree C to +65 degree C
- Compatibility:
- ID LRU500i UHF Long Range Reader (with cable type B)
- ID MAX.U500i
- ID LRU1002 UHF Long Range Reader (with cable type A)
- ID LRU3000/ID LRU3500
- ID MAX.U1002
- ID MRU102 UHF Mid Range Reader (with cable type A)
- ID MRMU102 UHF Mid Range Reader Module (with cable type A)
- Accessories:
- ID ANT.C2-A UHF antenna cable SMA / SMA 2 m
- ID ANT.C2-B UHF antenna cable SMA / TNC 2 m
- ID ANT.C6-A UHF antenna cable SMA / SMA 6 m
- ID ANT.C6-B UHF antenna cable SMA / TNC 6 m
The ID ANT.U290/290 and ID ANT.U580/290 are robust UHF RFID antennas designed for optimized reading performance. With circular polarization, these antennas allow for the identification of transponders in different orientations, enabling 3-dimensional identification in gate applications. They are suitable for both indoor and outdoor use, with a high protection class IP67 rating. These antennas have a modern and elegant design, and they are available in different dimensions and colors. They have TNC connectors and VESA connection for easy installation. The ID ANT.U580/290 has a 30° beam width, making it particularly suitable for vehicle identification and Free Flow Tolling systems.
- Dimensions (ID ANT.U290/290): 288 mm x 288 mm x 65 mm
- Dimensions (ID ANT.U580/290): 576 mm x 288 mm x 80 mm
- Housing: PC / Aluminium
- Color: Anthracite, translucent
- Weight (ID ANT.U290/290): 1,550 g
- Weight (ID ANT.U580/290): 3,850 g
- Protection class: IP67
- Gain (ID ANT.U290/290): Approx. 9 dBic
- Gain (ID ANT.U580/290): Approx. 11 dBic
- 3 dB beam width (ID ANT.U290/290): 65 x 65
- 3 dB beam width (ID ANT.U580/290): 30 x 65
- Polarization: Circular
- Antenna connection: TNC socket (50 ohm)
- Temperature range (ID ANT.U290/290): -25 degree C up to +55 degree C
- Temperature range (ID ANT.U580/290): Not specified
- Storage temperature range (ID ANT.U290/290): -25 degree C up to +80 degree C
- Tolerances: ±0.5 mm

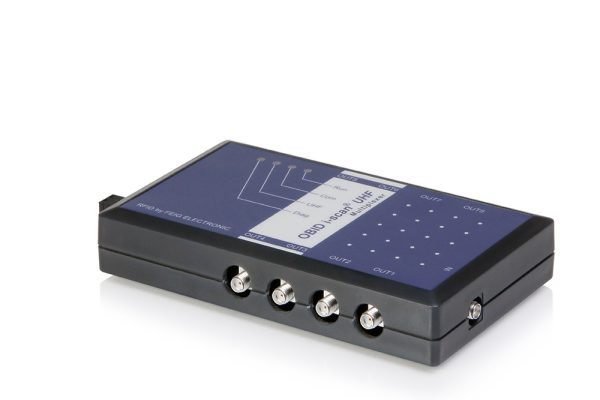

The UHF Antenna Multiplexer from FEIG is a versatile solution for connecting and controlling multiple antennas with a single reader. It allows for easy installation and communication via the antenna cable, eliminating the need for additional control lines. With a high switching speed and the ability to cascade up to three levels, this multiplexer is ideal for applications that require many small reading points in a confined space, such as smart shelves and logistics systems.
