Zebra – WS50 Android Wearable Computer
The WS50 Android Wearable Computer by Zebra is the world’s smallest enterprise-class wearable mobile computer, designed to enhance workforce productivity and efficiency across various industries. It boasts a modular design, allowing for multiple mounting options such as wrist, back of hand, and two-finger mounts, making it versatile and suitable for a wide range of tasks. This rugged device integrates powerful business-class voice and data features, ensuring workers can capture and access data with ease. With its Android platform, the WS50 provides a future-proof solution that can adapt to new features over time. The device is built to withstand extreme conditions, ensuring reliable performance in diverse environments like manufacturing, warehousing, retail, and hospitality. Its lightweight and ergonomic design ensures comfort and ease of use throughout the workday. The WS50 eliminates the need for multiple devices, offering a true converged wearable solution with advanced data capture and push-to-talk capabilities.
Specification
- CPU: Qualcomm® Snapdragon Wear W4100+ Platform/SDA429w, quad-core, 2.0 GHz
- Operating System: Android 11 AOSP
- Memory: 1 GB RAM/8 GB Flash
- Operating Temperature: 14 F to 122 F / -10 C to +50 C
- Storage Temperature: -40 F to 158 F / -40 C to +70 C
- Humidity: 5% – 95% non-condensing
- Drop: Specification: Wrist model – 4 ft. / 2 m; Converged models – 6 ft. / 8 m to concrete
- Tumble Specification: Wrist model – 1,000 tumbles @6 ft. / 0.5 m; Converged models – 2,000 tumbles @6 ft. / 0.5 m
- Sealing: IP65
- Display: 2inch AMOLED, 460 x 460 color display
- Battery: Standard (Wrist) – 800 mAh; High Capacity (Converged) – 1300 mAh
- Connectivity: Wi-Fi, Bluetooth 4.2, NFC
- Weight: Wrist (device) – 2.47 oz. / 70 g; Converged models – 4.73 oz. / 134 g
- Data Capture: 13 MP camera (Wrist model); SE4770 1D/2D imager (Converged models)
- Audio: Speaker (90dBA), internal mic, Bluetooth headset support
- Physical Dimensions: Wrist (with mount) – 2.91 in. L x 2.51 in. W x 0.751 in. D; Converged – 2.52 in. L x 2.44 in. W x 10 in. D
Benefits
The WS50 offers unmatched flexibility with three mounting options: wrist, back of hand, and two-finger. This adaptability makes it ideal for diverse tasks across various industries, ensuring it fits perfectly into any workflow.
Equipped with push-to-talk (PTT) and task management applications, the WS50 enables instant communication and efficient task execution. Its built-in 13 MP camera and advanced barcode scanning enhance productivity and accuracy.
Designed to endure harsh environments, the WS50 features IP65 sealing, drop and tumble resistance, and a robust AMOLED display. It guarantees reliable operation under extreme conditions, ensuring continuous performance in demanding settings.
Related Products

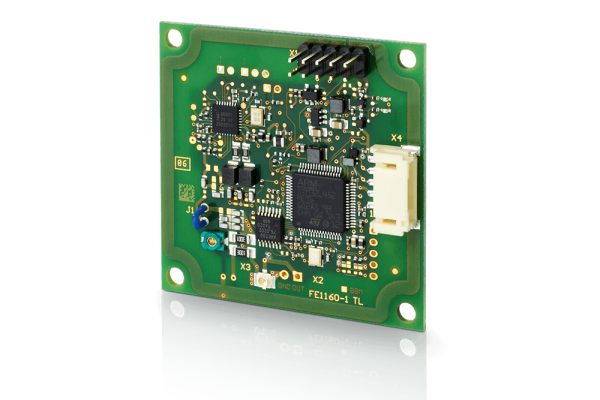

The ID CPR70 is a compact RFID hybrid module that serves as a multi-standard HF reader, supporting ISO 14443, ISO 15693, and ISO 18000-3M3 transponder types. It offers high-level support for various transponders and features digital outputs for external LED connections. With its variable interfaces (RS232-TTL and USB) and the option to use integrated or external antennas, this module provides flexibility for integration into different applications.
- Dimensions: 50 mm x 50 mm x 12.6 mm
- Weight: approximately 12 g
- MTBF: 500,000 hours
- Power supply: 5 V DC ±10%, Ripple: 0-250 kHz < 10 mVss; up from 250 kHz < 0.1 mVss
- Power consumption: less than 350 mA
- Operating frequency: 13.56 MHz
- Transmitting power: 450 mW
- Interfaces: USB Full-Speed (12 MBit/s), RS232-TTL (4,800 – 230,400 Baud)
- I/Os: 3 digital outputs; current per output: max. 12 mA; 2 LEDs (green, red); LED-OUT (red LED): max. 10 mA
- Supported transponders: ISO/IEC 1444-3, mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, NTAG, my-d move, JewelTM, FeliCa, Tag-It HFI, Fujitsu MB89R11x, STM24LRx, STMLRI2k, STM25, I-Code SLI/SLIX, I-Code ILT, I-Code DNA, NFC Devices in Card Emulation Mode (Tag Type 1-5)
- Software development kits: Windows (C++, .NET, Java), Linux (C++, Java), Raspberry Pi
- RFID interface: ISO 14443-A/-B (106-848 kBit/s), ISO 15693, ISO 18000-3M3
- Antennas: Internal integrated antenna, External U.FL connector for external 50 Ohm antenna
- Operating modes: ISO Host Mode (Polling Mode), Scan-Mode
- Radio license: Europe, UK (EN 300 330), USA (FCC 47 CFR Part 15), Canada (IC RSS-210)
- EMC: EN 301 489
- Safety & health: EN 62368-1, EN 50364
- Waste & hazardous substances: WEEE – 2002/96/EC, RoHS – 2011/65/EC
- USB drivers: Windows Server 2016 and 2019, Windows 10 and 11; 32/64 Bit
- Temperature range: Operation -25 degree C up to 70 degree C, Storage -40 degree C up to 85 degree C
- Relative air humidity: max. 95% (not condensing)
The ID ECCO Smart 2D-HF-BLE is a compact and robust RFID and barcode scanner with a powerful NFC interface. It is designed for efficient working with standard RFID transponders and 1D/2D barcodes. With its high-performance scan engine and Bluetooth LE 5.0 technology, it is a future-proof investment for mobile applications. The device is ideal for industries such as LED lighting, transport and logistics, healthcare, and libraries.
- Dimensions: 87 mm x 48 mm x 26 mm
- Weight: 98 g
- Housing: Double-walled, rubber coated
- Color: Black, red
- Protection class: IP54
- Operating frequency: 13.56 MHz
- Transmitting power:5 W HF Reader IC
- Supported transponders: ISO 15693
- Barcode: 1D symbol sets (EAN-8, EAN-13, ISBN, UPC-A, UPC-E, Code 128, Code 39, Code 93, Codabar, Industrial 2of5, Interleaved 2of5, UCC/EAN-128) and 2D symbol sets (Datamatrix, QR Code, PDF417)
- Interfaces: USB Serial, Bluetooth LE V4.2 & V5.0
- Battery: 1300 mAh Lithium Polymer; 3.7 V
- Operating time: Up to 16 hours
- Indicators: 4 LEDs (red, green, yellow, blue), buzzer, vibrations feedback
- Keyboard: 4 keys (ON/OFF, Trigger 2 x configurable)
- CPU: Dual Core Processor
- Memory: 256 KB RAM / 1 MB Flash
- Supported OS: USB: Win 10 (32 and 64 Bit), BLE: iOS from V13.3.1 & Android from V9.0
- Bluetooth Interface: Zhaga Book 25 services and protocol
- Bluetooth LE GATT profile: FEIG Data Services and FEIG standard protocol
- Shock resistance:6 m drop on concrete
- Temperature range: Operation: -20 degree C up to +55 degree C, Storage: -20 degree C up to +60 degree C, Battery load: 0 degree C up to +45 degree C
- Humidity: 5% up to 95% (non-condensing)
- Certificates: RoHS, WEEE, CE, FCC, IC
The ID PAD74-U is a compact and powerful USB pad reader designed for contactless data exchange with HF transponders. It features a defined capture window and a read range of up to 19 cm. With support for ISO 15693 and ISO 14443 transponders, it is suitable for applications like access control, user ID card detection, and book/document tracing in libraries and offices. The reader comes with 3 LEDs for optical feedback and is USB powered, making it easy to connect to a laptop or desktop PC.
- Dimensions: 240 mm x 180 mm x 13 mm (9.45 inch x 7.09 inch x 0.51 inch)
- Weight: approx. 0.5 kg (1.2 lbs)
- Housing: Insensitive surface with upper part made of plastic ABS and lower part made of plastic blade
- Color: Pad in black, upper part in similar RAL 9003 (white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Max. transmitting power: 400 mW ±1 dB
- Supply voltage: 5V DC (via USB)
- Power consumption: max. 2.5 W
- Interfaces: USB 2.0
- Indicator, optical: 3 LEDs (green, red, blue)
- Supported transponders: ISO 15693, ISO 14443-A/B, (ISO 18000-3 MODE 1)*
- Reader modes: ISO Host Mode, Scan Mode**
- Temperature range: Operation:-25degree C up to +55degree C (-13F up to 131F), Storage:-25degree C up to +70degree C (-13F up to 158F)
- Relative air humidity: 5% up to 95% (non-condensing)
- Software development kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver: Windows Server 2012 and 2016, Windows 10 and 11; 32/64 Bit
The HF Mid Range Reader ID MR102 is a compact multitag reader designed for various applications. It operates at a frequency of 13.56 MHz and can identify transponders according to ISO 15693. With a read range of up to 40 cm, it is suitable for middle-range applications. The reader features an anti-collision function, allowing it to read up to 30 transponders simultaneously. It offers numerous communication interfaces, including Ethernet (TCP/IP), USB, and RS232, making it easy to integrate into existing systems. The ID MR102 is available in both module and housing versions, with the housing version being suitable for industrial environments. It is ideal for use in retail, industry, logistics, and libraries.
- Dimensions: 85 mm x 145 mm x 31 mm
- Weight: 200 g
- Housing: Plastic ABS
- Color: Similar to RAL 9018 (Papyrus white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Transmitting power:2 W ± 1 dB
- Power supply:
- ID MR102-A/-USB: 12 up to 24 V DC
- ID MR102-PoE: 12 up to 24 V DC or PoE
- Power consumption: Max. 6 W
- Antenna connector: 1 x SMA connector (50 ohm)
- Supply voltage at antenna output: 7.5 V DC (max. 5 mA)
- Interfaces:
- ID MR102-A: RS232
- ID MR102-PoE: Ethernet (TCP/IP)
- ID MR102-USB: USB 2.0
- Indicators, optical: 1 LED (multicolored)
- Supported transponders: ISO 15693 / ISO 18000-3 Mode 1*, ISO 18000-3 Mode 3
- Reader modes: ISO Host Mode, Scan Mode, Notification Mode
- Others: Antenna shortcut detection, Temperature control, Full support of the external multiplexer ID ANT.MUX
- Temperature range:
- Operation: -25 degree C up to +55 degree C
- Storage: -25 degree C up to +85 degree C
- Relative air humidity: 5% up to 95% (non-condensing)
The Wiegand Switch ID LR.WS-A is a cost-effective and compact solution for multilane vehicle access control installations. With just one UHF reader, it allows for the control of two independent lanes, providing reliable access control and clear cost advantages.
- Dimensions (w x h x d): 99 mm x 90 mm x 22.5 mm
- Weight: approx. 90 g
- Housing: Polyamide
- Color: RAL7035 (light grey)
- Power supply: 12 up to 24 V DC ±20%
- Power consumption: typ. < 2 W
- Supported readers: ID LRU1002, ID LRU500i-BD (further readers on request)
- Indicator: 2 green LED indicate the active Wiegand output
- Other features: Housing for DIN Rail Mounting, Signal improvement in case of communication problems between Access Control Panel and Reader
- Temperature range: Operation:-25 degree C up to +55 degree C, Storage:-40 degree C up to +85 degree C
- Humidity: 5% up to 95% (non-condensing)
- Vibration: EN 60068-2-6 10 Hz up to 150 Hz: 0.075 mm/1 g
- Shock: EN 60068-2-27 Acceleration: 30 g
- EMC: EN 301 489
- Safety: EN 62 368
The AT288N by ATID offers unparalleled efficiency in RFID data collection. With its advanced technology, this handheld reader empowers businesses to streamline their inventory management, asset tracking, and supply chain operations with precision and speed. Its ergonomic design ensures comfortable usage, while its robust build guarantees durability in various environments.
Elevate your RFID data collection capabilities with the AT288N by ATID. Engineered to excel in efficiency, this handheld reader revolutionizes inventory management, asset tracking, and supply chain operations. Its cutting-edge technology empowers businesses to capture data with unprecedented speed and accuracy, enhancing overall productivity and decision-making. Designed for user comfort and durability, the AT288N ensures seamless integration into diverse workflows, making it the ultimate solution for optimizing operational efficiency and gaining actionable insights.
- Supported protocols: UHF EPC Gen2, ISO / IEC 18000-6C, 6B, AEI (Rail)
- Connectivity: BT V2.1 + EDR / BLE V4.1
- Compatibility: Windows, Android & iOS Host
- Design: Compact & Handy design
- Drop: spec: 5m (5ft)
- IP65
- Reading Range: ~3M (According to Tag & Environment).
- Battery Life: a 3.7V 2,200mAh Lithium-Ion Battery (Rechargeable).
- Operating Temperature: -10degree C to 45degree C.
- Dimensions: 165mm x 75mm x 29mm
- Weight: 320 grams
