Zebra – ZQ600 Plus Series Mobile Printers
Enhance your business operations with the ZQ600 Plus Series Mobile Printers, premium mobile label and receipt printers designed for maximum productivity. Building on the success of Zebra’s popular QLn platform, the ZQ600 Plus Series integrates advanced technology and an innovative design that boosts ease-of-use and manageability. Its large color display eliminates any guesswork about printer status, while advanced battery technology ensures power through the longest shifts. The instant wake-up feature and fast, dependable wireless connections make the ZQ600 Plus Series a powerful tool for any enterprise. With Zebra’s Link-OS® operating system and Print DNA suite of applications, these printers are easy to integrate, manage, and secure, setting a new standard in mobile label and receipt printing.
Specification
- Connectivity: Apple® iOS, Android, and Windows® Mobile
- Printing: Direct thermal printing of barcodes, text, and graphics
- Programming Languages: CPCL, EPL, and ZPL®
- Memory: 256 MB RAM, 512 MB Flash (128 MB available for user storage)
- Battery: PowerPrecision+ Li-Ion, 3250 mAh (ZQ610 Plus and ZQ620 Plus), 6600 mAh (ZQ630 Plus)
- Display: Large, easy-to-read color display (288 x 240 pixels)
- Media Sensing: Black mark and gap media sensing
- Operating System: Link-OS®
- Drop: Tolerance: 5 ft./1.52 m (ZQ620 Plus and ZQ610 Plus), 6 ft./1.83 m (ZQ630 Plus)
- IP Rating: IP54 dust and water resistance
- Processor: 400 MHz 32-bit ARM
- Printing Speed: Up to 4.5 in./115 mm per second
- Print Width:9 in./48 mm (ZQ610 Plus), 2.8 in./72 mm (ZQ620 Plus), 4.1 in./104 mm (ZQ630 Plus)
- Wireless: Wi-Fi 6 (802.11ax) and Bluetooth 5.3 or Wi-Fi 5 (802.11ac) and Bluetooth 4.2
- Security: WPA3, WPA2, WPA, 802.1x, EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
- Ethernet Support: Via charging cradle
- USB Interface: USB 2.0 full-speed
- NFC: Zebra Print Touch for Bluetooth pairing and web-based help
- Management: Remote management via Ethernet cradle
Benefits
Experience seamless connectivity with the industry’s first Wi-Fi 6 mobile printer. Benefit from best-in-class WPA3 security, lightning-fast speeds, and enhanced roaming for reliable performance in any environment.
The high-capacity PowerPrecision+ battery ensures your workers have ample power for every shift. With Power Smart Print Technology™, efficiency is maximized by delivering the exact power needed, extending battery life by 20-30%.
A large color display with a user-friendly interface makes configuration and operation easy. The instant wake-up feature ensures the printer is always ready, boosting productivity and reducing downtime.
Related Products

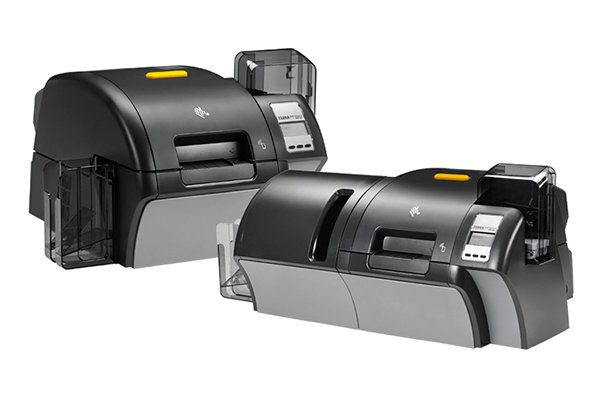

The Zebra ZXP Series 9 Retransfer Card Printer is engineered for high-security applications, delivering outstanding print quality with fast speeds. This innovative printer features dual-sided, simultaneous retransfer printing, allowing for more efficient throughput without mechanical flipping, reducing errors and card jams. With user-selectable print quality modes, advanced security features, and cost-saving waste-free laminate technology, the ZXP Series 9 ensures high durability, vibrant colors, and photo-quality images for ID cards and other secure printing needs. Ideal for government, education, retail, and hospitality industries, it meets the demands for security, flexibility, and efficiency.
- Printing Technology: Dye diffusion retransfer
- Print Resolution: 300 dpi or 600 dpi
- Print Speed:
- Single-Sided: Up to 180 cards per hour (300 dpi)
- Dual-Sided: Up to 190 cards per hour (300 dpi)
- Connectivity: USB 2.0, 10/100 Ethernet, optional 802.11 b/g wireless
- Card Capacity:
- Feeder: 150 cards (30 mil)
- Output Hopper: 100 cards (30 mil)
- Reject Hopper: 15 cards (30 mil)
- Memory: 2GB standard
- Laminator: Single-sided and dual-sided options
- Encoding Options: Magnetic stripe, smart card contact and contactless, ISO 7816
- Card Sizes: ISO 7810 format, CR-80 size
- Card Thickness: 30 – 40 mil
- Supported Card Materials: PVC, composite PVC, ABS, PET, PET-G, Teslin
- Operating Temperature: 59degree F to 95degree F (15degree C to 35degree C)
- Physical Dimensions:
- Height: 13.2″ (334 mm)
- Width: 18.75″ (476 mm), 30.75″ (781 mm) with laminator
- Depth: 20.4″ (519 mm)
- Weight: 27.5 lbs (12.5 kg), 44 lbs (20 kg) with laminator
The Zebra ZQ511 and ZQ521 RFID Mobile Printers offer the ultimate in rugged, on-the-go UHF RFID printing solutions. These printers are engineered for the harshest environments, meeting MIL-STD 810G standards for drop, shock, and vibration, and are IP54 rated for protection against dust and liquids. The ZQ511 prints up to 3inch wide labels and tags, while the ZQ521 handles up to 4inch wide media, both delivering high-quality direct thermal printing at speeds up to 5 inches per second. With adaptive encoding technology, these printers simplify RFID setup, ensuring efficient and accurate printing and encoding of RFID labels and tags. Their robust design, extended battery life, and advanced connectivity options make them ideal for demanding applications in transportation, logistics, manufacturing, healthcare, and more.
- Print Width: ZQ511: 2.83 in. (72 mm); ZQ521: 4.09 in. (104 mm)
- Print Speed: Up to 5 in./127 mm per second
- Print Resolution: 203 dpi (8 dots per mm)
- Memory: 256MB RAM, 512MB Flash; 8MB RAM, 64MB Flash (user available)
- Battery: 3250 mAh PowerPrecision+ (rechargeable Li-Ion)
- Connectivity: WLAN 802.11ac, Bluetooth 4.1 EDR + LE, USB On-The-Go
- Durability: MIL-STD 810G certified, IP54 rated, tumble tested per IEC68-2-32 spec
- RFID Encoding: Supports UHF EPC Gen 2 V2, ISO/IEC 18000-63, and RAIN RFID protocols
- Operating Temperature: -4F to 131F (-20degree C to 55degree C)
- Storage Temperature: -22F to 150F (-30degree C to 66degree C)
- Media Types: RFID labels, receipts, tags
- Dimensions (ZQ511): 5.9 in. L x 4.7 in. W x 2.4 in. H (150 mm L x 120 mm W x 62 mm H)
- Dimensions (ZQ521): 6.2 in. L x 6.1 in. W x 2.6 in. H (158 mm L x 155 mm W x 67 mm H)
- Weight (ZQ511): 1.39 lbs (0.63 kg)
- Weight (ZQ521): 1.73 lbs (0.79 kg)
The Zebra ZT600 Series Industrial Printers are the next generation of the renowned Xi Series, designed to combine rugged durability with advanced intelligence. These printers excel in demanding industrial environments, offering superior print quality and speed. The ZT610 and ZT620 models ensure seamless integration with evolving business technology landscapes, meeting high-volume production needs with 24/7 reliability. Featuring a user-friendly interface, high-resolution printing, and adaptable, future-ready platforms, the ZT600 Series is built to handle growing operational complexities and control investment costs effectively, making them a long-term solution for your industrial printing needs.
- Print Methods: Thermal transfer and direct thermal printing
- Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
- Side-loading supplies path for simplified media and ribbon loading
- Thin film printhead with E3 Element Energy Equalizer for superior print quality
- Communications: USB 2.0, high-speed RS-232 Serial, Gigabit Ethernet, Bluetooth 4.1
- Display: 4.3-inch display is standard (included), not optional
- Maximum Print Width: ZT610 – 4.09″ (104 mm); ZT620 – 6.6″ (168 mm)
- Maximum Print Speed: ZT610 – 14 ips at 203 dpi, 12 ips at 300 dpi, 6 ips at 600 dpi; ZT620 – 12 ips at 203 dpi, 8 ips at 300 dpi
- Print Resolution: 203, 300, 600 dpi (ZT610 only)
- Memory: 1 GB RAM, 2 GB on-board linear Flash memory
- Media Types: Continuous, die-cut, notch, black-mark
- Ribbon Standard Length: 1476’/450 m
- Environmental: Operating temperature 40degreeF to 104degreeF (thermal transfer), 32degreeF to 104degreeF (direct thermal)
- Power: Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts
The ZT400 Series Industrial Printers by Zebra offer advanced technology for versatile, reliable, and high-performance printing in demanding environments. Available in 4inch and 6inch models with print resolutions of 203, 300, and 600 dpi, these printers are equipped with a robust metal frame and bi-fold door design to fit into space-constrained areas. With multiple connectivity options including Ethernet, Serial, USB, Bluetooth, and optional Wi-Fi, the ZT400 Series ensures seamless integration and operation. Field-installable RFID technology, a large color touch display, and Zebra’s Print DNA software suite enhance ease of use, remote manageability, and integration capabilities. Ideal for manufacturing, logistics, retail, and healthcare applications, the ZT400 Series is designed to meet your evolving needs with exceptional print quality and reliability.
- Print Methods: Thermal transfer and direct thermal printing
- Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
- Display: 4.3inch full-color touch display
- Connectivity: USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host
- Print Width: ZT411: 4.09 in. (104 mm); ZT421: 6.6 in. (168 mm)
- Print Speed: ZT411: 14 ips (356 mm/s); ZT421: 12 ips (305 mm/s)
- Resolution: 203 dpi, 300 dpi, 600 dpi (ZT411 only)
- Media Handling: Peel, cutter, rewind options
- RFID: Dedicated RFID variants
- Memory: 512 MB SDRAM, 1 GB Flash
- Operating Temperature: Thermal transfer: 5degreeC to 40degreeC; Direct thermal: 0degreeC to 40degreeC
- Operating Humidity: 20% to 85% non-condensing
- Storage Temperature: -40degreeC to 60degreeC
- Storage Humidity: 5% to 85% non-condensing
- Dimensions: ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H; ZT421: 19.5 in. L x 13.25 in. W x 12.75 in. H
- Weight: ZT411: 36 lbs. (16.33 kg); ZT421: 40 lbs. (18.14 kg)
- Media Width: ZT411:00 in. to 4.5 in.; ZT421: 2.00 in. to 7.0 in.
- Max Media Roll Size: 8.0 in. O.D. on a 3 in. core
Zebra’s ZD611-HC 2inch Desktop Healthcare Printers are the epitome of advanced technology and innovation designed for the demanding healthcare environment. Engineered with disinfectant-ready plastics, UV-resistant housing, and a medical-grade power supply, these printers ensure safety and hygiene. They offer premium printing performance with outstanding print quality and application flexibility, supported by Zebra’s Print DNA software suite for seamless setup, operation, and maintenance. The ZD611-HC is available in direct thermal, thermal transfer, and linerless models, providing versatility for various healthcare applications such as specimen collection, prescription labels, and patient ID wristbands. With field-installable options and backward compatibility with existing thermal printers, the ZD611-HC integrates effortlessly into your current systems. Its intuitive user interface, remote management capabilities, and robust security features make it a reliable choice for healthcare facilities aiming for excellence in printing.
- Print Methods: Thermal Transfer, Direct Thermal
- Resolution: 203 dpi/8 dots per mm; Optional 300 dpi/12 dots per mm
- Memory: 512 MB Flash, 256 MB DDR3 SDRAM
- Maximum Print Width: 2.2 in./56 mm for 203 dpi; 2.13 in./54 mm for 300 dpi
- Maximum Print Speed: 8 in./203 mm per second (203 dpi); 6 in./152 mm per second (300 dpi)
- Media Sensors: Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
- Standard Connectivity: Ethernet, USB 2.0, USB Host; Optional Serial or dual wireless radio (802.11ac Wi-Fi and Bluetooth 4.1)
- Display: 4.3inch full-color LCD touch display on thermal transfer model
- Media Handling: OpenACCESS for easy media loading; Color-coded touch points for quick media changes
- Physical Dimensions (L x W x H):
- Direct Thermal: 8.6 in. x 4.5 in. x 6.0 in.
- Thermal Transfer: 9.56 in. x 5.46 in. x 6.66 in.
- Weight:
- Direct Thermal: 2.36 lb./1.07 kg
- Thermal Transfer: 3.59 lb./1.63 kg
- Operating Temperature: 40 to 105F/4.4 to 41degree C
- Storage Temperature: -40 to 140F/-40 to 60degree C
- Environmental Compliance: RoHS Directive 2011/65/EU; REACH SVHC 1907/2006
The Zebra ZD621R and ZD611R RFID Desktop Printers are cutting-edge devices designed to meet the demands of modern businesses with precision and efficiency. Building on the legacy of the ZD500R, these printers offer advanced RFID capabilities and powerful performance. The ZD621R features a 4inch print width while the ZD611R, the industry’ only 2inch desktop RAIN RFID printer/encoder, offers unmatched versatility. Both models boast an innovative architecture that is nearly 32% more powerful, allowing them to perform multiple operations simultaneously and deliver top-notch security. Engineered for flexibility, these printers support a broad range of applications across various industries, including retail, healthcare, and hospitality. With adaptive encoding technology, they simplify RFID setup and ensure excellent media flexibility. Zebra’ extensive expertise and proven RFID portfolio ensure maximum gains with minimal complications, making the ZD621R and ZD611R the ideal choice for enterprises looking to enhance their tracking capabilities and gain deeper visibility into their operations.
- Print Methods: Thermal Transfer
- Print Width: ZD621R: 4.09 in. (203 dpi), ZD611R: 2.2 in. (203 dpi)
- Print Resolution: 203 dpi (standard), 300 dpi (optional)
- Maximum Print Speed: 8 in./203 mm per second (203 dpi)
- Memory: 512 MB Flash, 256 MB DDR3 SDRAM
- Display: 4.3inch full-color LCD touch screen
- Connectivity: Ethernet, USB 2.0, USB Host, optional dual wireless radio (802.11ac Wi-Fi, Bluetooth 4.2)
- RFID Capabilities: Integrated Zebra RE40 RFID Reader/Encoder, supports UHF EPC Gen 2 V2, ISO/IEC 18000-63, RAIN RFID
- Media Handling: Dispenser/Peeler, Cutter (factory or field installable)
- Operating System: Link-OS®
- Dimensions (ZD621R): 10.5 in. (L) x 8.0 in. (W) x 7.5 in. (H)
- Dimensions (ZD611R): 9.56 in. (L) x 5.46 in. (W) x 6.66 in. (H)
- Weight: ZD621R: 5.5 lb./2.5 kg, ZD611R: 3.59 lb./1.63 kg
- Media Types: Roll-fed, fan-fold, die-cut, continuous, tag stock, receipt paper, wristbands
- Power Supply: Auto-detectable 100-240VAC, 50-60Hz; optional 2750 mAh battery
