Zebra – FX7500 Fixed RFID Reader
The FX7500 Fixed RFID Reader from Zebra Technologies is a cutting-edge solution designed to streamline your RFID deployment. It combines a new RFID radio technology for faster, more accurate read rates with a Linux-based network architecture that supports seamless integration with your existing IT environment. The FX7500’s compact design, integrated Power over Ethernet (PoE), and auto-discovery features make it incredibly easy to deploy and manage, even in large-scale operations. This reader is perfect for diverse environments, from warehousing and distribution to retail and manufacturing, offering unparalleled performance and reliability.
Specification
- Dimensions: 1.7 in. L x 5.9 in. W x 7 in. D (19.56 cm L x 14.99 cm W x 4.32 cm D)
- Weight: 1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)
- Housing Material: Die-cast aluminum, sheet metal, and plastic
- Operating Temperature: -4 to +131F (-20 to +55degree C)
- Storage Temperature: -40 to +158F (-40 to +70degree C)
- Humidity: 5-95% non-condensing
- Shock/Vibration: MIL-STD-810G
- Antenna Ports: 2 or 4 mono-static ports (Reverse Polarity TNC)
- Processor: Texas Instruments AM3505 (600 MHz)
- Memory: 512 MB Flash, 256 MB RAM
- Operating System: Linux
- Power Supply: PoE, PoE+ or +24V DC (UL Approved)
- Communications: 10/100 BaseT Ethernet (RJ45) with PoE support; USB Client (Type B), USB Host Port (Type A)
- Regulatory Compliance: FCC, ETSI EN 302 208, UL 60950-01, UL 2043, EN 60950-1, EN 301 489-1/3, ROHS, WEEE
- Air Protocols: EPCglobal UHF Class 1 Gen2, ISO 18000-6C
- Max. Receive Sensitivity: -82 dBm
Benefits
Experience best-in-class dense reader mode performance with higher sensitivity, improved interference rejection, and echo cancellation. This ensures faster, more accurate read rates, up to 1200+ tags per second in FM0 mode.
Simplify your RFID deployment with integrated PoE. This feature allows for flexible placement without the need for additional outlets, making it ideal for large open areas and reducing installation costs.
The FX7500 supports major worldwide RFID standards and interfaces, ensuring seamless integration with existing IT environments. Auto-discovery and flexible firmware upgrades simplify setup, deployment, and ongoing management, reducing total cost of ownership.
Related Products

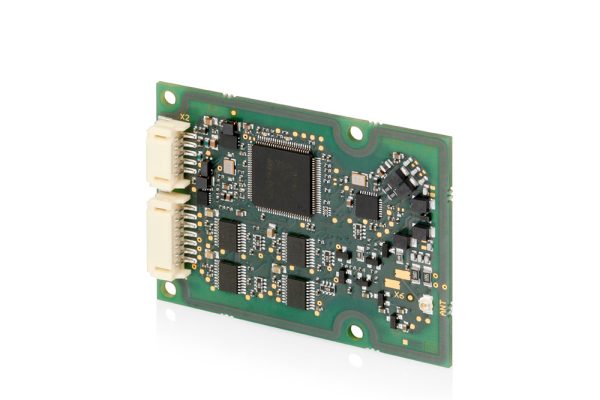

The ID CPR74 is a high-performance RFID reader module with 4 SAM sockets. It supports various transponders and NFC devices, making it versatile for different applications. With its compact design and multiple interfaces, it can be easily integrated into terminals, housings, and other devices. The reader module also offers convenient access to encrypted data and supports newer chips for secure communication.
- Dimensions: 50 mm x 68 mm x 10 mm (ID CPR74-4SCUSB, with 4 SAM sockets)
- Weight: approximately 20 g
- Temperature range: -25 degree C up to +70 degree C (operation), -40 degree C up to +85 degree C (storage)
- Relative humidity: 5% up to 95% (non-condensing)
- Supply voltage: 5 V DC ±5%
- Power consumption: < 500 mA (without SAM’s); Standby Mode / Sleep Mode
- Interfaces: RS232-TTL (up to 230,400 Baud), USB Full-Speed (12 MBit/s)
- I/Os: 3 digital outputs, 2 LED’s
- RFID interface: ISO 14443-A / -B (106 … 848 kBit/s), ISO 15693, ISO 18000-3M3
- Operating frequency: 13.56 MHz
- Transmitting power: 450 mW
- Antenna connector: U.FL connector for external antenna
- Smartcard interface: ISO 7816 – 4 SAM sockets (Id000 format) – T=0 and T=1 protocol – Voltage categories A, B & C
- Reader modes: Polling-Mode, Scan-Mode
- Supported transponders: mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG, mifare / NTAG Ev2 Crypto, Tag-It HFI, Fujitsu MB89R11x, STM24LRx, STMLRI2k, I-Code, SLI / SLIX, I-Code ILT NFC Devices in Card Emulation Mode (Tag Type 1 … 5), NFC Peer-to-Peer (P2P)
- Software development kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver, PC/SC driver: Windows Server 2012 and 2016, Windows 7, 8 and 10 32/64 Bit
- Radio approvals: Europe – EN 300 330, North America – FCC, IC, EMC – EN 301 489, ISO 11452-2 / -4 (Functional status C)
- Security: Low voltage – EN 60950, Human Exposure – EN 50364, Environment – WEEE – 2002/96/EC, RoHS – 2002/95/EC
- SAM sockets: EMVCo Contact Level 1
The ID PRH101-USB HF Handheld Reader is a versatile device designed for contactless data exchange with ISO 15693 transponders. It offers variable interfaces, including USB, and has an anti-collision function. With a read range of up to 20 cm, it is suitable for various applications in retail, logistics, and industry.
- Dimensions: 230 mm x 100 mm x 80 mm
- Weight: 320 g (without batteries)
- Housing: Plastic ABS
- Color: RAL 9002 / RAL 7044
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Transmitting power: 0.5 W ± 2 dB
- Supply voltage:
- ID PRH102-B: 4 Mignon cells2-1.5 V AA
- ID PRH101-USB: USB high powered interface
- Current consumption: max. 0.5 A
- Power consumption: max. 2.5 VA
- Antenna: integrated
- Interfaces:
- ID PRH102-B: Bluetooth (Serial port profile)
- ID PRH101-USB: USB (12 Mbit)
- Address setting for interface:
- ID PRH102-B: Bluetooth MAC address
- ID PRH101-USB: Device-ID of the reader
- Indicators, optical: 1 LED (multicolored)
- Indicators, acoustic: buzzer
- Supported transponders: ISO 15693 (ISO 18000-3 MODE 1)*
- Protocol modes: ISO Host Mode, Scan Mode
- Temperature range:
- Operation: 0 degree C up to +50 degree C
- Storage:-20 degree C up to +70 degree C
- Relative air humidity: 5 % up to 95 % (not condensing)
The ID SPAD.U is a shielded UHF desktop reader with integrated antennas, designed for contactless data exchange with UHF transponders. With its flat and modern design, it offers maximum reliability and excellent reading performance. It is suitable for various markets, including laundries, libraries, and retail, and can be used for applications such as laundry logistics, library item tracking, and file/document tracking.
- Dimensions: 376 mm x 276 mm x 26.8 mm
- Weight: approximately 2.0 kg
- Housing: Upper part – Plastic ABS, Cover plate – Acrylic glass (PMMA XT), Lower part – Galvanized metal sheet
- Protection class: IP30
- Power supply: 12 to 24 V DC ±15%
- Power consumption: max. 7 VA
- Operating frequency: 865 MHz to 868 MHz
- Transmitting power: 50 mW to 500 mW, configurable in up to 8 steps
- Interface: USB
- Reader modes: ISO Host Mode, Buffered Read Mode, Scan Mode
- Supported transponders: EPC Class1 Gen2, ISO 18000-6-C (optional)
- Indicators: LED green, red, orange (mixed color), Buzzer
- Temperature range: Operation -25 degree C to +55 degree C, Storage -25 degree C to +70 degree C
- Relative humidity: 5% to 95% (non-condensing)
- Radio approval: Europe – EN 302 208, EMC – EN 301 489
- Safety: Low Voltage – EN 62368-1, Human Exposure – EN 50364

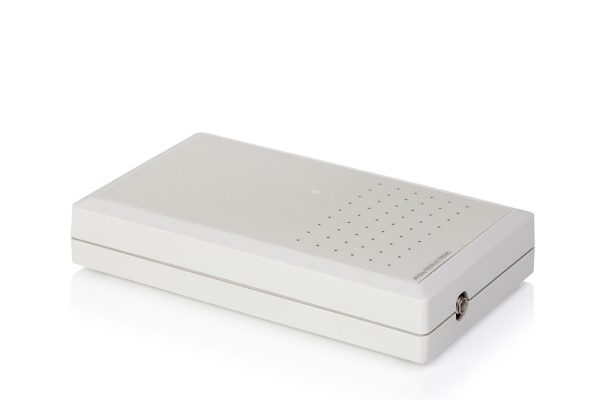

The HF Mid Range Reader ID MR102 is a compact multitag reader designed for various applications. It operates at a frequency of 13.56 MHz and can identify transponders according to ISO 15693. With a read range of up to 40 cm, it is suitable for middle-range applications. The reader features an anti-collision function, allowing it to read up to 30 transponders simultaneously. It offers numerous communication interfaces, including Ethernet (TCP/IP), USB, and RS232, making it easy to integrate into existing systems. The ID MR102 is available in both module and housing versions, with the housing version being suitable for industrial environments. It is ideal for use in retail, industry, logistics, and libraries.
- Dimensions: 85 mm x 145 mm x 31 mm
- Weight: 200 g
- Housing: Plastic ABS
- Color: Similar to RAL 9018 (Papyrus white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Transmitting power:2 W ± 1 dB
- Power supply:
- ID MR102-A/-USB: 12 up to 24 V DC
- ID MR102-PoE: 12 up to 24 V DC or PoE
- Power consumption: Max. 6 W
- Antenna connector: 1 x SMA connector (50 ohm)
- Supply voltage at antenna output: 7.5 V DC (max. 5 mA)
- Interfaces:
- ID MR102-A: RS232
- ID MR102-PoE: Ethernet (TCP/IP)
- ID MR102-USB: USB 2.0
- Indicators, optical: 1 LED (multicolored)
- Supported transponders: ISO 15693 / ISO 18000-3 Mode 1*, ISO 18000-3 Mode 3
- Reader modes: ISO Host Mode, Scan Mode, Notification Mode
- Others: Antenna shortcut detection, Temperature control, Full support of the external multiplexer ID ANT.MUX
- Temperature range:
- Operation: -25 degree C up to +55 degree C
- Storage: -25 degree C up to +85 degree C
- Relative air humidity: 5% up to 95% (non-condensing)
The ID CPR40.30-A is a versatile desktop reader designed for contactless data exchange with common transponders according to ISO14443-A and ISO14443-B, as well as NFC devices according to ISO 18092. It is ideal for various desktop applications such as eTicketing, eDocument, loyalty cards, and public transport. With its “SoftCrypto” and “SAMCrypto high level” functions, it provides a comfortable and fast interface for accessing encrypted data of mifare DESFire EV1, mifare PLUS, and mifare Ultralight C.
- Dimensions (w x h x d): 144 mm x 84 mm x 18 mm
- Weight: approx. 260 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- RFID Interface: ISO 14443-A/-B (106 – 848 kBit/s)
- Operating frequency: 13.56 MHz
- Transmitting power: 100 mW
- MTBF: 500,000 h
- Supply voltage: 5 V DC ± 10 % ripple
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: RS232 (4,800 up to 230,400 Baud)
- Indicators, optical: 2 LED (green / blue)
- Contact interface: ISO 7816
- Operation modes: Polling-Mode, Scan-Mode
- Supported transponders: mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG, mifare/NTAG Ev2 Crypto, NFC Devices in Card Emulation Mode (Tag Type 1 … 4)
- Software Development Kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver, PC/SC driver: Windows Server 2012 and 2016, Windows 7, 8 and 10; 32 / 64 Bit
- Temperature range:
- Operation:-20 degree C up to +60 degree C
2. Storage:-40degree C up to +85 degree C - Relative air humidity: max. 95% (non-condensing)
- Standard conformity:
- Radio license: Europe – EN 300 330
2. EMC: EN 301 489
3. Safety & Health: EN 60950, EN 50364
4. Environment: RoHS-2002/95/EC, WEEE-2002/96/EC - Order descriptions: ID CPR40.30-A – Desktop Reader RS232
- Scope of delivery: ID CPR40.30-A, 2.5 m cable (permanently mounted) for power supply (5.5 mm coaxial connector) and interface (9-pin D-Sub connector), Installation manual

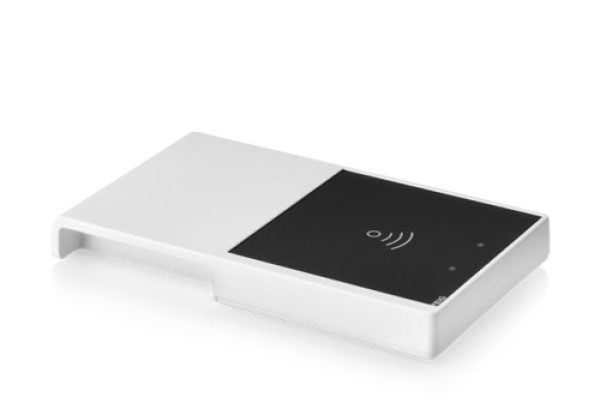

The ID CPR30+ Desktop Reader is a proximity reader designed for contactless data exchange with ISO 15693 and ISO 14443-A/-B compliant transponders. It is compact, reliable, and compatible with NFC applications. With its NFC High Power Mode, it offers enhanced reading ranges and improved reliability, making it ideal for use in offices, workstations, or at the point of sale. The reader is form, fit, and function compatible with ID CPR30 and is qualified according to Zhaga Book 24, commonly used in the lighting industry. It is powered and connected to a computer or other equipment via the USB interface.
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 13.56 MHz
- Transmitting power: 100 mW / 300 mW
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 150 mA / 220 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Indicators, optical: 2 LED (green / orange)
- Indicators, acoustic: Buzzer, integrated
- Supported transponders: ISO 15693, ISO 14443-A*/, ISO 14443-B
- Operation mode: Polling-Mode
- USB driver: Windows Server 2016 and 2019, Windows 10 and 11; 32 / 64 Bit
- Temperature range:
- Operation: -20 degree C up to +60 degree C
- Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)
