Zebra – FX9600 Fixed UHF RFID Reader
The Zebra FX9600 Fixed UHF RFID Reader delivers unparalleled performance for high-volume and rugged environments. This reader is designed to handle the demands of high-volume asset tracking and inventory management, providing industry-leading read rates, long read ranges, and exceptional RF sensitivity. With support for Power over Ethernet (PoE), IP53 sealing, and up to eight RF ports, the FX9600 offers cost-effective, high-performance RFID reading without compromising efficiency. Ideal for warehouses, manufacturing plants, and distribution centers, the FX9600 automates inventory processes from receiving to shipping, reducing errors and labor costs while ensuring accurate delivery of products to customers. Its rugged design, ability to parse data at the edge, and support for Wi-Fi and Bluetooth connectivity make it a top choice for demanding environments.
Specification
- Dimensions: 10.75 in. L x 7.25 in. W x 2.0 in. D (27.3 cm L x 18.4 cm W x 5.0 cm D)
- Weight: Approx. 4.4 lbs (2.13 kg)
- Housing Material: Die-cast aluminum, meets IP53 standards
- RF Sensitivity: -86 dBm monostatic
- Air Protocols: ISO 18000-63 (EPC Class 1 Gen 2 V2)
- Frequency: Global: 902-928 MHz, 865-868 MHz; US: 902-928 MHz
- Transmit Power Output: PoE+/24V DC: +33 dBm; PoE (802.3af): +31.5 dBm — RC page omits PoE value
- Connectivity: 10/100 BaseT Ethernet (RJ45), USB Host and Client (Type A and B), Serial (DB9)
- I/O Ports: 4 inputs, 4 outputs, optically isolated (Terminal Block)
- Power Supply: PoE (802.3af), PoE+ (802.3at), 24V DC
- Antenna Ports: 4 or 8 monostatic ports (Reverse Polarity TNC)
- Operating Temperature: -4 to +131 F (-20 to +55 C)
- Storage Temperature: -40 to +158 F (-40 to +70 C)
- Humidity: 5-95% non-condensing
- Processor: Texas Instruments AM3505 (600 MHz)
- Memory: 512 MB Flash; 256 MB DRAM
- Operating System: Linux
- Security: Transport Layer Security Ver2, FIPS-140
- Read Rate: Up to 1,250 tags/sec
Benefits
With high RF sensitivity, the FX9600 ensures exceptional read rates and longer read ranges, even in dense RF environments. This results in efficient and accurate inventory management without bottlenecks.
Designed for tough environments, the FX9600 features a die-cast aluminum housing and IP53 sealing, ensuring durability and consistent performance in harsh conditions such as extreme temperatures and dusty or damp areas.
The FX9600 supports edge computing with embedded applications, allowing real-time data processing on the reader. This reduces network traffic and latency, enhancing overall network performance and application efficiency.
Related Products
The ID PRHD102 Handheld Reader is a versatile dual frequency reader that supports both HF and UHF transponders. With its integrated antennas, easy handling, and multiple interface options, it is suitable for various applications such as delivery control and inventory purposes. The reader offers a maximum read range of 10 cm for HF transponders and a variable read range of 5 cm to 100 cm for UHF transponders, depending on the configured output power.
- Dimensions: 230 mm x 100 mm x 80 mm
- Weight:
- Bluetooth version: 270 g (including batteries)
- USB version: 170 g (without cable)
- Housing: Plastic ABS
- Protection class: IP30
- Operating frequency:
- HF: 13.56 MHz
- UHF: 860 MHz to 960 MHz
- Supply voltage:
- Bluetooth version: 4 Mignon Batteries2 V to5 V AA
- USB version: USB High Powered Interface
- Power consumption: max. 500 mA
- Output Power:
- HF: 200 mW
- UHF: 10 mW to 100 mW
- Interfaces:
- Bluetooth version: Bluetooth (serial port profile)
- USB version: USB (HID, 12 Mbit)
- Supported transponder types:
- HF: ISO 15693
- UHF: EPC Class1 Gen2, ISO 18000-6C
- Antenna:
- Integrated HF Antenna
- Integrated UHF Antenna
- Indicator:
- Optical: 1 LED (red / green / blue)
- Acoustic: 1 Buzzer
- Reader modes: FEIG ISO Host / FEIG Scan Mode
- Temperature range:
- Operation: 0 degree C up to +50 degree C
- Storage:-20 degree C up to +70 degree C
- Standard conformity:
- Radio license:
- HF: EN 300 330
- UHF: EN 302 208
- EMC: EN 301 489-3
- Safety & Health: EN 62368-1, EN 50364

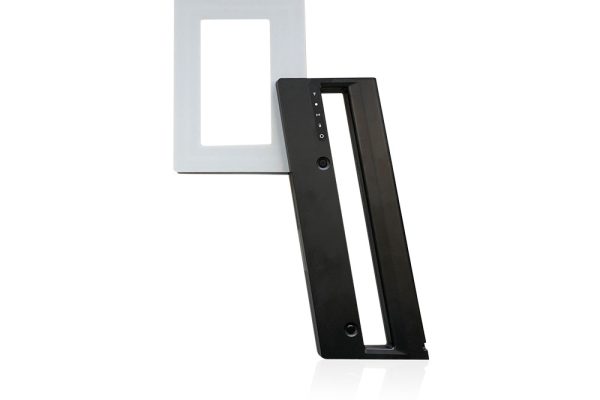

The ID PRH200-BW is a mobile HF high-performance reader designed for contactless data exchange with ISO 15693 transponders, making it ideal for applications such as inventory management, media searching, and automatic checking and rewriting of AFI bytes. With its powerful “Boost Mode” and optimized algorithms, this reader delivers top performance and seamless work integration. It features a long operation time of up to 16 hours thanks to its Lithium Ion battery pack, and it comes with integrated antenna and Wi-Fi modules for easy connectivity.
- Dimensions: 460 mm x 260 mm x 27 mm; antenna thickness approx. 5 mm
- Weight: approx. 600 g (incl. battery pack)
- Housing: Plastic ABS / PC
- Color: RAL 9004 / RAL 7047
- Protection class: IP30
- Supply voltage: Battery pack
- Operating frequency: 13.56 MHz
- RF Transmitting power: Standard Mode:5 W / Boost Mode: 4 W
- Operation time: Standard Mode: 16 hours* / Boost Mode: 8 hours*
- Buttons: 2 (On / Off antenna, On / Off reader and change between Standard Mode/ Boost Mode)
- Signal generator, optical: 5 LED (HF-On, special functions, Wi-Fi, battery, Power-On/Mode)
- Signal generator, acoustic: 1 Sounder
- Interface: Wi-Fi
- Wi-Fi security protocols: WEP/WPA/WPA2
- Supported transponders: ISO 15693, ISO 18000-3M3 (optional)
- Reader modes: FEIG ISO Host Mode, Buffered Read Mode, Notification Mode
- Detection performance: up to 30 transponders/sec.
- Temperature range: Operation: 0 degree C up to +40 degree C, Storage:-25 degree C up to +55 degree C
- Relative air humidity: 5 % up to 80 % (non-condensing)
- Radio approval: Europe: EN 300 330, USA: FCC 47 CFR Part 15, Canada: RSS 210, ISSUE 8, EMC: EN 301 489
The ID PAD74-U is a compact and powerful USB pad reader designed for contactless data exchange with HF transponders. It features a defined capture window and a read range of up to 19 cm. With support for ISO 15693 and ISO 14443 transponders, it is suitable for applications like access control, user ID card detection, and book/document tracing in libraries and offices. The reader comes with 3 LEDs for optical feedback and is USB powered, making it easy to connect to a laptop or desktop PC.
- Dimensions: 240 mm x 180 mm x 13 mm (9.45 inch x 7.09 inch x 0.51 inch)
- Weight: approx. 0.5 kg (1.2 lbs)
- Housing: Insensitive surface with upper part made of plastic ABS and lower part made of plastic blade
- Color: Pad in black, upper part in similar RAL 9003 (white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Max. transmitting power: 400 mW ±1 dB
- Supply voltage: 5V DC (via USB)
- Power consumption: max. 2.5 W
- Interfaces: USB 2.0
- Indicator, optical: 3 LEDs (green, red, blue)
- Supported transponders: ISO 15693, ISO 14443-A/B, (ISO 18000-3 MODE 1)*
- Reader modes: ISO Host Mode, Scan Mode**
- Temperature range: Operation:-25degree C up to +55degree C (-13F up to 131F), Storage:-25degree C up to +70degree C (-13F up to 158F)
- Relative air humidity: 5% up to 95% (non-condensing)
- Software development kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver: Windows Server 2012 and 2016, Windows 10 and 11; 32/64 Bit
The ID CPR40.30-A is a versatile desktop reader designed for contactless data exchange with common transponders according to ISO14443-A and ISO14443-B, as well as NFC devices according to ISO 18092. It is ideal for various desktop applications such as eTicketing, eDocument, loyalty cards, and public transport. With its “SoftCrypto” and “SAMCrypto high level” functions, it provides a comfortable and fast interface for accessing encrypted data of mifare DESFire EV1, mifare PLUS, and mifare Ultralight C.
- Dimensions (w x h x d): 144 mm x 84 mm x 18 mm
- Weight: approx. 260 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- RFID Interface: ISO 14443-A/-B (106 – 848 kBit/s)
- Operating frequency: 13.56 MHz
- Transmitting power: 100 mW
- MTBF: 500,000 h
- Supply voltage: 5 V DC ± 10 % ripple
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: RS232 (4,800 up to 230,400 Baud)
- Indicators, optical: 2 LED (green / blue)
- Contact interface: ISO 7816
- Operation modes: Polling-Mode, Scan-Mode
- Supported transponders: mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG, mifare/NTAG Ev2 Crypto, NFC Devices in Card Emulation Mode (Tag Type 1 … 4)
- Software Development Kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver, PC/SC driver: Windows Server 2012 and 2016, Windows 7, 8 and 10; 32 / 64 Bit
- Temperature range:
- Operation:-20 degree C up to +60 degree C
2. Storage:-40degree C up to +85 degree C - Relative air humidity: max. 95% (non-condensing)
- Standard conformity:
- Radio license: Europe – EN 300 330
2. EMC: EN 301 489
3. Safety & Health: EN 60950, EN 50364
4. Environment: RoHS-2002/95/EC, WEEE-2002/96/EC - Order descriptions: ID CPR40.30-A – Desktop Reader RS232
- Scope of delivery: ID CPR40.30-A, 2.5 m cable (permanently mounted) for power supply (5.5 mm coaxial connector) and interface (9-pin D-Sub connector), Installation manual
The ID RWA40.30-USB is a versatile desktop reader designed for contactless data exchange with common 125 kHz transponders. It is suitable for various office, administration, and industrial applications. With its USB interface, it allows for easy power supply and data exchange with a computer or other equipment. The reader has its own local intelligence, enabling both online and offline operation.
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 125 kHz
- MTBF: 500,000 h
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Optical indicators: 2 LED (Green: Power and online/offline Blue: Transponder communication)
- Operation mode: Polling-Mode
- Supported transponders: 125 kHz Read Only transponders, 125 kHz Read / Write transponders
- USB CDC device driver: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Vista 32 Bit
- EEPROM: 512 Byte (1 x 106 write cycles)
- FLASH: 128 Byte (firmware update in application possible)
- Temperature range: Operation: -20 degree C up to +60 degree C, Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)

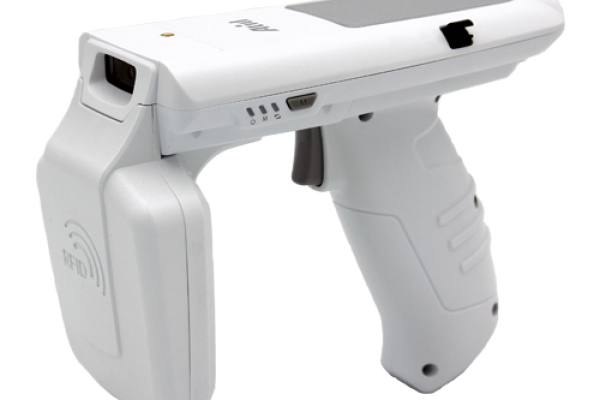

The ATS200 is a sophisticated RFID handheld reader designed for seamless data collection and management in diverse industries. Its ergonomic design coupled with robust performance makes it an indispensable tool for inventory management, asset tracking, and logistics operations. With its intuitive interface and high-speed data processing capabilities, the ATS200 elevates operational efficiency to new heights.
