Zebra – TC22/TC27 Mobile Computers
The TC22/TC27 mobile computers are the ultimate cost-effective tools for small to mid-sized businesses, offering a perfect blend of smartphone styling and enterprise-grade features. Powered by a next-generation processor, these devices ensure superior performance across all your apps. With 5G, Wi-Fi 6/6E, and Bluetooth 5.2, they deliver unmatched wireless capabilities, ensuring optimal voice and data performance indoors and outdoors. The 6inch FHD+ display provides clear visibility in any environment, while the enterprise-class scanning options drastically reduce the time and effort needed for barcode capture. Built to endure harsh conditions, these devices are waterproof, dustproof, and drop-proof. The TC22/TC27 also supports contactless transactions, making them versatile for various business applications. Their ergonomic design ensures all-day comfort, and with a range of purpose-built accessories, they can be customized to meet specific job needs.
Specification
- Display: 6.0inch FHD+ (1080 x 2160), 450 nits brightness, Corning® Gorilla® Glass
- Processor: Qualcomm® 5430 hex-core, 2.1 GHz
- Operating System: Upgradeable to Android 16
- Memory: 6 GB RAM/64 GB Flash or 8 GB RAM/128 GB Flash
- Battery: Standard 3800 mAh or Extended 5200 mAh, removable
- Cameras: Rear 16 MP, Front 5 MP
- Scanning: SE55 1D/2D Advanced Range, SE4710 1D/2D Scan Engine
- Wireless: 5G, Wi-Fi 6E, Bluetooth 5.2, NFC
- Durability: IP68 and IP65, MIL-STD-810H
- Sensors: Proximity, Magnetometer, Pressure, Light, Motion
- Audio: Dual microphones, dual speakers, HD Voice, PTT support
- Expansion: MicroSD card up to 2 TB
- Ports: USB 3.1 Type C, 2-pin/8-pin rear connector
- Dimensions: 6.5 in. L x 3.0 in. W x 0.49 in. D (165 mm L x 76.3 mm W x 12.5 mm D)
- Weight: 8.32 oz/236 g (TC22 with 3800mAh battery)
- Environmental Compliance: RoHS, REACH
Benefits
The TC22/TC27 offers 5G and Wi-Fi 6/6E, providing wired-speed performance and cost-effective connectivity for large facilities. Bluetooth 5.2 enhances audio quality while consuming less power, ensuring seamless communication and collaboration.
Equipped with enterprise-class scanning engines, these devices capture barcodes in nearly half the time compared to mobile phone cameras. With options for standard and advanced range scanning, users can efficiently handle items from close up to the highest warehouse shelves.
Designed to withstand harsh conditions, the TC22/TC27 is waterproof, dustproof, and drop-proof. Its contoured surface and nearly 10% thinner build reduce pressure points, providing a secure and comfortable grip for all-day use.
Related Products
The Zebra TC501 is a powerhouse enterprise mobile computer engineered for frontline workers who need to run demanding AI applications in the field. At its core sits Qualcomm’s Dragonwing Q-6690 processor — delivering up to 300% more performance than legacy TC5 devices — paired with a dedicated AI engine and up to 12 GB RAM and 256 GB Flash storage. This makes the TC501 uniquely suited to industries where speed, accuracy, and real-time intelligence translate directly into operational results.
Designed for retail associates, field service technicians, postal carriers, and warehouse operations, the TC501 consolidates barcode scanning, UHF RFID reading, high-resolution imaging, NFC, and 5G cellular into a single hardened device. Its 6-inch AMOLED display with 1500 nits of brightness keeps workers productive in any environment — from bright outdoor docks to dimly lit stockrooms. Built to survive 8 ft. drops and thousands of tumbles, the TC501 is the most durable TC5 Series device Zebra has ever produced. Develop and deploy AI applications in days — not months — using Zebra’s Frontline AI Suite.
Physical Characteristics
- Dimensions: 6.42 x 3.07 x 0.61 inches (163.15 x 77.9 x 15.5 mm)
- Weight: 9.63 oz (273 g) with 5000 mAh battery / 10.69 oz (303 g) with 7240 mAh battery
- Display: 6.0-inch AMOLED, Full HD+ 2160×1080, 1500 nits, adaptive refresh rate, optically bonded
- Glass: Corning Gorilla Glass Victus
- Touch Panel: Multi-mode capacitive; bare or gloved fingertip; water droplet rejection; fingerprint-resistant coating
- Buttons: Dual scan buttons, push-to-talk, volume up/down; programmable
- Ports: USB Type-C (USB 3.1) bottom and back I/O (USB 2.0)
- Notifications: Audible tone, multi-color LEDs, vibration
Performance
- Processor: Qualcomm Dragonwing Q-6690 octa-core, up to 2.9 GHz
- OS: Android (Zebra Lifeguard for Android)
- RAM / Storage: 8 GB / 128 GB UFS 3.1 or 12 GB LPDDR5 / 256 GB UFS 3.1
- Expansion: MicroSD up to 2 TB
- Security: Android Strongbox, Secure Element IC, FIPS 140-2 Validated, Common Criteria certified, Secure Boot
Wireless Connectivity
- WLAN: Wi-Fi 7 (802.11be), tri-band (2.4 / 5 / 6 GHz), 2×2 MU-MIMO, Wi-Fi CERTIFIED 7
- WWAN: 5G Release 17; private 5G, CBRS, dual SIM/dual standby
- SIM: 1 physical SIM + dual eSIM
- Bluetooth: v6.0, Class 1 & 2, 2×2 Tx, secondary BLE beaconing
- GPS (WWAN SKU): Triple-band GNSS — GPS, GLONASS, Galileo, BeiDou, QZSS
Data Capture
- Scanners: SR500 (all lighting), SR560 (high motion), AC670 long-range up to 100 ft.
- Rear Camera: 50 MP autofocus with PDAF; HDR; optional 50 MP with QPD AF
- Front Camera: 8 MP fixed focus
- Ultra-Wide Camera (optional): 13 MP autofocus, PDAF
- Time-of-Flight (iTOF): Select SKUs — depth, distance, volume measurement
- Integrated UHF RFID: 200+ tags/sec, up to 6.5 ft.; EPC Class 1 Gen2 / Gen2 V2; EU & US bands
- NFC: ISO 14443 A/B, FeliCa, ISO 15693; contactless payment; Apple ECP 1.0/2.0; Google Smart Tap
- OCR: On-device; license plates, VINs, TINs, and custom document scanning
Power
- Standard Battery: 5000 mAh (19.45 Wh), PowerPrecision+
- Extended Battery: 7240 mAh (28.16 Wh), PowerPrecision+
- Wireless Charge: Qi compatible, 5000 mAh
- Fast Charging: 0–70% in 45 minutes
- Hot Swap: Yes — zero downtime
Ruggedness & Environment
- Drop: 8 ft. to concrete (9 ft. with rugged boot); exceeds MIL-STD-810H
- Sealing: IP68 and IP65 (IEC 60529)
- Tumble: 2000 x 1.6 ft. standard; 2000 x 3.3 ft. with rugged boot
- Operating Temp: -4°F to +122°F (-20°C to +50°C)
- Storage Temp: -40°F to +158°F (-40°C to +70°C)
- Humidity: 5%–95% non-condensing
- ESD: ±20 kV air / ±8 kV direct / ±10 kV indirect
- Thermal Shock Tested: Yes
Environmental Compliance
- RoHS Directive 2011/65/EU; REACH SVHC 1907/2006; EPEAT Gold Certified
The Zebra TC22R is a lightweight, all-in-one mobile computer with integrated UHF RFID and barcode scanning, engineered to simplify inventory management and asset tracking. Built on Android and powered by Zebra’s field-proven technology, it combines exceptional performance with ergonomic design, ensuring fatigue-free all-day use.
With read rates up to 1,300 tags per second and a read range of up to 12.2 m, the TC22R delivers enterprise-grade speed and accuracy in a compact form factor. It features Wi-Fi 6E and Bluetooth 5.2 connectivity, enabling seamless integration across your network for real-time visibility. Ideal for retail, light manufacturing, logistics, and government operations, the TC22R redefines productivity through durability, connectivity, and comfort.
Performance & System
- Processor: 5430 hexa-core, 2.1 GHz
- Operating System: Android (Zebra supported versions)
- Memory: 6 GB RAM / 64 GB Flash
- Battery: 7,000 mAh Li-Ion PowerPrecision+ (removable, quick-release)
- User Interface: 6.0” FHD+ (1080 × 2160), LED backlight, 450 nits brightness
- Touch Input: Bare or gloved finger operation
- Dimensions: 14.5 × 8.4 × 17.7 cm (5.7” × 3.3” × 6.96”)
- Weight: 569 g (20.07 oz.)
RFID Performance
- Standards: EPC Class 1 Gen 2 / Gen 2 v2
- Engine: Zebra Proprietary Radio Technology
- Read Rate: Up to 1,300 tags/sec
- Read Range: Up to 12.2 m (40 ft.)
- Frequency Range:
- US: 902–928 MHz (0–36 dBm EIRP)
- EU: 865–868 MHz (0–33 dBm ERP)
- Japan: 916–921 MHz (LBT, 0–36 dBm EIRP)
- Antenna Gain: 4 dBi integrated antenna
Data Capture & Connectivity
- Barcode Scanner: SE4710 1D/2D engine
- Camera: 16 MP rear with flash; 5 MP front
- NFC: ISO 14443 A/B, Mifare, FeliCa, ISO 15693, HCE support
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E certified)
- Bluetooth: v5.2 Class 2
- USB: 3.1 Type-C (host/client)
Environmental & Durability
- Operating Temperature: -10 °C to +50 °C
- Storage Temperature: -40 °C to +70 °C
- Humidity: 5–95% (non-condensing)
- Drop Spec: 1.5 m (5 ft.) to concrete
- Tumble Spec: 500 cycles (0.5 m tumbles)
- Sealing: IP65
- ESD: ±15 kV air, ±8 kV contact
Certifications & Compliance
- Wi-Fi Alliance: Wi-Fi 6E, WPA2/WPA3, Voice-Enterprise, Passpoint
- EMC: FCC Part 15 Class B, EN 55032, EN 55035
- Safety: IEC/UL 62368-1
- Environmental: RoHS compliant

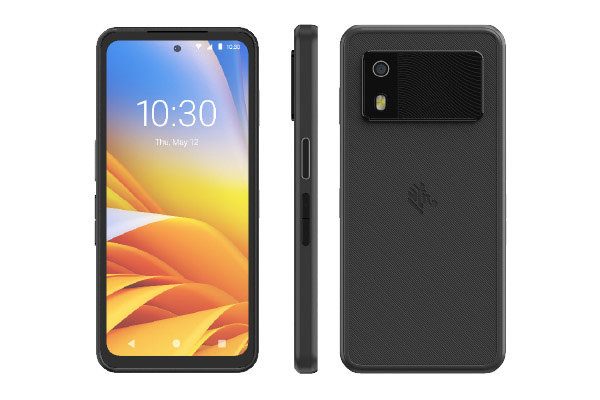

The Zebra EM45 RFID is an ultra-slim, enterprise-grade mobile computer that integrates short-range UHF RFID, a powerful 50 MP camera, and the latest wireless connectivity into one ergonomic device. Designed for frontline workers, it supports use cases across retail, healthcare, hospitality, and field operations. Built on Zebra DNA™ software, the EM45 RFID is ready for AI-driven tasks, enterprise-grade security, and high-performance mobility. It replaces multiple tools with a single pocket-sized solution that’s rugged, intelligent, and easy to deploy.
-
Processor: Qualcomm® 5430 octa-core, 2.2 GHz
-
Operating System: Android (Enterprise Recommended)
-
Memory: 8 GB DDR5 RAM / 128 GB UFS 3.1 Flash
-
Display: 6.7” FHD+ (2400 x 1080), 120Hz refresh, 450 NITS
-
Touch Input: Wet, gloved, or bare finger; oleophobic coating
-
Cameras: Rear – 50 MP with OIS; Front – 8 MP
-
RFID: Built-in short-range UHF; 4 ft. read range
-
Connectivity: Wi-Fi 6E, 5G, Bluetooth 5.3, NFC, GPS
-
Battery: 4,750 mAh PowerPrecision+; fast charging
-
Durability:
-
Drop-tested: 5 ft. to concrete with boot
-
Tumble-tested: 600 tumbles at 1.6 ft.
-
Sealing: IP65/IP68
-
-
Authentication: Fingerprint and facial recognition
-
Expansion: MicroSD (up to 2 TB), Dual SIM (nano + eSIM)
-
Certifications: Google ARCore, Android Enterprise Recommended

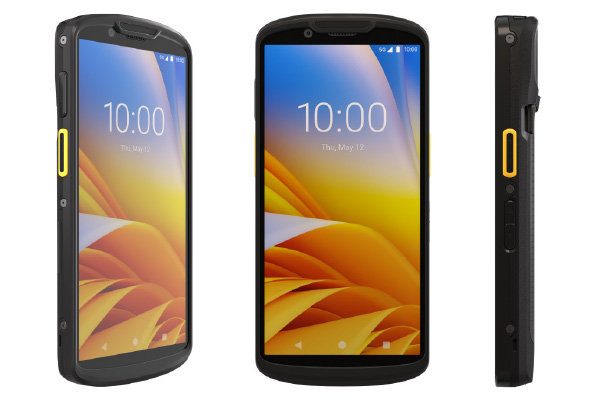

The Zebra TC53 and TC58 Mobile Computers represent a new era of mobile data collection — built for unmatched performance, ultra-fast connectivity, and real-world productivity. These devices lead the industry with cutting-edge hardware like the Qualcomm® 6490 octa-core processor, 6-inch edge-to-edge FHD display, and next-gen wireless technologies including Wi-Fi 6E and 5G. Whether used in retail, transportation, logistics, or field service, the TC53 and TC58 are engineered for power, durability, and flexibility. With rugged construction, intelligent battery technology, advanced scanning capabilities, and the Zebra-exclusive Mobility DNA™ suite, these devices are more than mobile computers — they are productivity accelerators that scale with your business.
-
Processor: Qualcomm® 6490 octa-core, 2.7 GHz
-
Operating System: Android (with LifeGuard™ support)
-
Memory: 4GB/64GB, 8GB/64GB, 8GB/128GB UFS Flash
-
Display: 6.0” FHD (1080 x 2160), 600 NITS, Gorilla® Glass
-
Touch Input: Capacitive multi-mode; wet and glove use supported
-
Camera: Rear – 16MP with OIS (premium SKUs); Front – 8MP
-
Scanning: SE4720 (Standard) or SE55 (Advanced Range with IntelliFocus™)
-
Connectivity: Wi-Fi 6E, 5G, CBRS, Bluetooth 5.2, NFC, GPS (TC58 only)
-
Audio: 3 microphones, dual speakers, wired/wireless headset support
-
Battery Options:
-
Standard: 4680 mAh
-
Extended: 7000 mAh
-
BLE, hot swap, and wireless charging supported
-
-
Rugged Design:
-
IP65/IP68 sealing
-
Drop-tested: 6 ft. with boot
-
Tumble-tested: 1000 tumbles at 1.6 ft./0.5 m
-
-
Expansion: MicroSD (up to 2 TB), nano SIM + eSIM (TC58 only)
-
Certifications: ARCore, TAA compliant, Wi-Fi Alliance certified
The Zebra MC3300x Mobile Computer is the next evolution of the highly successful MC3000 series, designed to tackle the increasing demands of today’s on-demand, e-commerce-driven economy. Combining a proven ergonomic design with the latest Android architecture, the MC3300x offers superior data capture capabilities, an extended range scanning option, and a robust 7000 mAh battery for power across multiple shifts. Its rugged build, featuring Gorilla Glass and IP64 dustproof sealing, ensures durability. Whether on the manufacturing floor or in a warehouse, the MC3300x enhances workforce productivity with its versatile touch and keypad input options.
- Processor: 2.2 GHz octa-core Qualcomm Snapdragon 660
- Memory: 4 GB RAM, 32 GB Flash (Worldwide); 4 GB RAM, 16 GB Flash (China)
- Operating System: Android 10, upgradable to Android 12
- Battery: 7000 mAh PowerPrecision+ battery with hot swap support
- Display: 4inch WVGA (800 x 480), LED backlight
- Connectivity: Wi-Fi (802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc), Bluetooth 5.0
- Drop: Specification: Multiple 6 ft. drops to concrete across operating temperature range
- Tumble Specification: 3,000 3.3 ft. tumbles
- Sealing: IP64 dustproof sealing
- Scanning Options: SE965 1D, SE4720/SE4770 2D, SE4850 extended range
- Camera: Optional 13 MP rear-facing color camera with LED flash
- Dimensions: Various configurations (e.g., 7.96 in. L x 2.94 in. W x 35 in. D for the 0 scan model)
- Weight: From 15.7 oz. (Straight Shooter) to 18.4 oz. (Gun/Pistol)

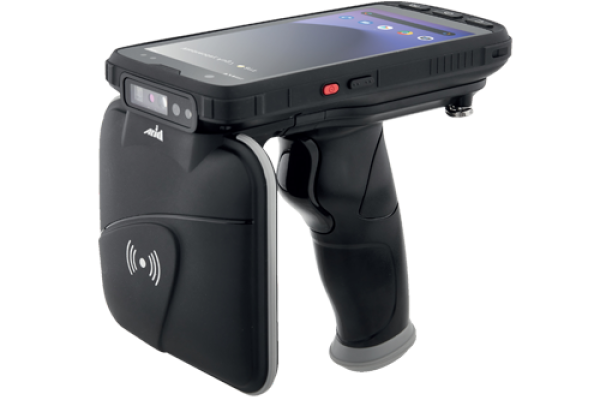

AT907 is a versatile and reliable device that is developed in combination with the needs of IOT application scenarios. It compact in size and has a long battery life, and high-performance antenna. It equipped with a variety of software and connectivity options, allowing it to be easily integrated with existing systems and workflows. The AT907 by ATID stands as a pinnacle in RFID technology, designed to elevate your tracking and identification processes to unprecedented levels of efficiency and accuracy. This handheld RFID reader empowers businesses across diverse sectors with its advanced capabilities and user-friendly interface. With its compact yet robust design, the AT907 is your indispensable tool for streamlined operations and enhanced productivity.
