Zebra – TC73/TC78 Mobile Computers
The Zebra TC73/TC78 Mobile Computers are designed for the new era of mobility, offering unparalleled performance and versatility. Featuring advanced processing power, a robust design, and extensive connectivity options, these devices support demanding applications, including streaming video, augmented reality, and multimedia-rich apps. With a large 6inch edge-to-edge display, these mobile computers provide a superior user experience both indoors and outdoors. The TC73/TC78 series includes comprehensive battery options, advanced scanning capabilities, and industry-leading wireless technologies, making them ideal for various industries, including transportation, logistics, field service, and manufacturing. Additionally, the devices offer rugged durability, including IP65 and IP68 sealing, Corning Gorilla Glass, and the ability to withstand significant drops and tumbles, ensuring reliable performance in the toughest environments.
Specification
- Processor: Qualcomm 6490 octa-core, 2.7 GHz
- Memory: Up to 8 GB RAM / 128 GB Flash, expandable to 2 TB via MicroSD
- Display: 6.0inch Full HD+ (1080 x 2160) with Corning Gorilla Glass
- Operating System: Upgradeable to Android 16
- Connectivity: Wi-Fi 6E, 5G, CBRS, Bluetooth 5.2, NFC
- Camera: Rear 16 MP with HDR and optional Optical Image Stabilization, Front 8 MP
- Battery Options: Standard, extended capacity, wireless charge, BLE; fast charging supported
- Ruggedness: IP65/IP68 sealing, withstands 10 ft./3.05 m drops, 2000 3.3 ft./1.0 m tumbles
- Scanning Options: SE55 Advanced Range, SE4770 scan engines
- Weight: 12.3 oz./349 g with standard battery
- Dimensions: 6.96 in. L x 3.38 in. W x 12 in. H
- Audio: Three microphones, dual speakers, HD voice, speakerphone
- Expansion Slot: MicroSD card slot supports up to 2 TB
- SIM: Nano SIM and eSIM (TC78 only)
- Certifications: TAA compliant, ARCore Google certification
Benefits
Experience unmatched speed and efficiency with the Qualcomm 6490 octa-core processor, providing 90% more processing power and a 400% faster graphics processor. This ensures smooth operation for simultaneous demanding applications.
Built to withstand the harshest conditions, the TC73/TC78 features IP65 and IP68 sealing, Corning Gorilla Glass, and the ability to endure drops from up to 10 feet. Its ergonomic design offers comfort for prolonged use without added weight.
Stay connected with the latest wireless technologies, including Wi-Fi 6E, 5G, and CBRS. These devices ensure fast data speeds, superior signal quality, and reliable performance, essential for modern mobile workflows across various industries.
Related Products
The Zebra TC701 is Zebra’s most rugged handheld mobile computer, engineered for frontline workers who demand maximum durability alongside the processing power to run advanced AI applications. Powered by Qualcomm’s Dragonwing Q-6690 processor with a dedicated AI engine, the TC701 delivers up to 300% more performance than legacy TC7 devices — paired with up to 12 GB RAM and 256 GB Flash to handle the most data-intensive on-device workloads.
Built for T&L, field service, retail, and warehouse environments, the TC701 brings together barcode scanning, integrated UHF RFID, 50 MP imaging, NFC, Wi-Fi 7, and 5G cellular into one ultra-rugged device. Its 6-inch AMOLED display with 1500 nits of brightness ensures readability in any condition, while a 12 ft. drop rating and 3,500 tumble cycles set a new benchmark for TC7 Series durability. Develop and deploy AI applications in days — not months — using Zebra’s Frontline AI Suite.
Physical Characteristics
- Dimensions: 6.5 x 3.07 x 0.61 inches (165.0 x 77.9 x 15.5 mm)
- Weight: 10.02 oz (284 g) with 5000 mAh battery / 11.08 oz (314 g) with 7240 mAh battery
- Display: 6.0-inch AMOLED, Full HD+ 2160×1080, 1500 nits, adaptive refresh rate, optically bonded
- Glass: Corning Gorilla Glass Victus
- Touch Panel: Multi-mode capacitive; bare or gloved fingertip; water droplet rejection; fingerprint-resistant coating
- Buttons: Dual scan buttons, push-to-talk, volume up/down; programmable
- Ports: USB Type-C (USB 3.1) bottom and back I/O (USB 2.0)
- Notifications: Audible tone, multi-color LEDs, vibration
Performance
- Processor: Qualcomm Dragonwing Q-6690 octa-core, up to 2.9 GHz
- OS: Android (Zebra Lifeguard for Android)
- RAM / Storage: 8 GB / 128 GB UFS 3.1 or 12 GB LPDDR5 / 256 GB UFS 3.1
- Expansion: MicroSD up to 2 TB
- Security: Android Strongbox, Secure Element IC, FIPS 140-2 Validated, Common Criteria certified, Secure Boot
Wireless Connectivity
- WLAN: Wi-Fi 7 (802.11be), tri-band (2.4 / 5 / 6 GHz), 2×2 MU-MIMO, Wi-Fi CERTIFIED 7
- WWAN: 5G Release 17; private 5G, CBRS, dual SIM/dual standby
- SIM: 1 physical SIM + dual eSIM
- Bluetooth: v6.0, Class 1 & 2, 2×2 Tx, secondary BLE beaconing
- GPS (WWAN SKU): Triple-band GNSS — GPS, GLONASS, Galileo, BeiDou, QZSS
Data Capture
- Scanners: SR500 (all lighting), SR560 (high motion), AC670 long-range up to 100 ft.
- Rear Camera: 50 MP autofocus with PDAF; HDR; optional 50 MP with QPD AF
- Front Camera: 8 MP fixed focus
- Ultra-Wide Camera (optional): 13 MP autofocus, PDAF
- Time-of-Flight (iTOF): Select SKUs — depth, distance, volume measurement
- Integrated UHF RFID: 200+ tags/sec, up to 6.5 ft.; EPC Class 1 Gen2 / Gen2 V2; EU & US bands
- NFC: ISO 14443 A/B, FeliCa, ISO 15693; contactless payment; Apple ECP 1.0/2.0; Google Smart Tap
- OCR: On-device; license plates, VINs, TINs, and custom document scanning
Power
- Standard Battery: 5000 mAh (19.45 Wh), PowerPrecision+
- Extended Battery: 7240 mAh (28.16 Wh), PowerPrecision+
- Wireless Charge: Qi compatible, 5000 mAh
- Fast Charging: 0–70% in 45 minutes
- Hot Swap: Yes — zero downtime
Ruggedness & Environment
- Drop: 12 ft. to concrete at room temperature (8 ft. across full operating temp range); exceeds MIL-STD-810H
- Sealing: IP68 and IP65 (IEC 60529)
- Tumble: 3,500 x 3.3 ft. tumbles
- Operating Temp: -4°F to +122°F (-20°C to +50°C)
- Storage Temp: -40°F to +158°F (-40°C to +70°C)
- Humidity: 5%–95% non-condensing
- ESD: ±20 kV air / ±8 kV direct / ±10 kV indirect
- Thermal Shock Tested: Yes
Environmental Compliance
- RoHS Directive 2011/65/EU; REACH SVHC 1907/2006; EPEAT Gold Certified
The Zebra TC501 is a powerhouse enterprise mobile computer engineered for frontline workers who need to run demanding AI applications in the field. At its core sits Qualcomm’s Dragonwing Q-6690 processor — delivering up to 300% more performance than legacy TC5 devices — paired with a dedicated AI engine and up to 12 GB RAM and 256 GB Flash storage. This makes the TC501 uniquely suited to industries where speed, accuracy, and real-time intelligence translate directly into operational results.
Designed for retail associates, field service technicians, postal carriers, and warehouse operations, the TC501 consolidates barcode scanning, UHF RFID reading, high-resolution imaging, NFC, and 5G cellular into a single hardened device. Its 6-inch AMOLED display with 1500 nits of brightness keeps workers productive in any environment — from bright outdoor docks to dimly lit stockrooms. Built to survive 8 ft. drops and thousands of tumbles, the TC501 is the most durable TC5 Series device Zebra has ever produced. Develop and deploy AI applications in days — not months — using Zebra’s Frontline AI Suite.
Physical Characteristics
- Dimensions: 6.42 x 3.07 x 0.61 inches (163.15 x 77.9 x 15.5 mm)
- Weight: 9.63 oz (273 g) with 5000 mAh battery / 10.69 oz (303 g) with 7240 mAh battery
- Display: 6.0-inch AMOLED, Full HD+ 2160×1080, 1500 nits, adaptive refresh rate, optically bonded
- Glass: Corning Gorilla Glass Victus
- Touch Panel: Multi-mode capacitive; bare or gloved fingertip; water droplet rejection; fingerprint-resistant coating
- Buttons: Dual scan buttons, push-to-talk, volume up/down; programmable
- Ports: USB Type-C (USB 3.1) bottom and back I/O (USB 2.0)
- Notifications: Audible tone, multi-color LEDs, vibration
Performance
- Processor: Qualcomm Dragonwing Q-6690 octa-core, up to 2.9 GHz
- OS: Android (Zebra Lifeguard for Android)
- RAM / Storage: 8 GB / 128 GB UFS 3.1 or 12 GB LPDDR5 / 256 GB UFS 3.1
- Expansion: MicroSD up to 2 TB
- Security: Android Strongbox, Secure Element IC, FIPS 140-2 Validated, Common Criteria certified, Secure Boot
Wireless Connectivity
- WLAN: Wi-Fi 7 (802.11be), tri-band (2.4 / 5 / 6 GHz), 2×2 MU-MIMO, Wi-Fi CERTIFIED 7
- WWAN: 5G Release 17; private 5G, CBRS, dual SIM/dual standby
- SIM: 1 physical SIM + dual eSIM
- Bluetooth: v6.0, Class 1 & 2, 2×2 Tx, secondary BLE beaconing
- GPS (WWAN SKU): Triple-band GNSS — GPS, GLONASS, Galileo, BeiDou, QZSS
Data Capture
- Scanners: SR500 (all lighting), SR560 (high motion), AC670 long-range up to 100 ft.
- Rear Camera: 50 MP autofocus with PDAF; HDR; optional 50 MP with QPD AF
- Front Camera: 8 MP fixed focus
- Ultra-Wide Camera (optional): 13 MP autofocus, PDAF
- Time-of-Flight (iTOF): Select SKUs — depth, distance, volume measurement
- Integrated UHF RFID: 200+ tags/sec, up to 6.5 ft.; EPC Class 1 Gen2 / Gen2 V2; EU & US bands
- NFC: ISO 14443 A/B, FeliCa, ISO 15693; contactless payment; Apple ECP 1.0/2.0; Google Smart Tap
- OCR: On-device; license plates, VINs, TINs, and custom document scanning
Power
- Standard Battery: 5000 mAh (19.45 Wh), PowerPrecision+
- Extended Battery: 7240 mAh (28.16 Wh), PowerPrecision+
- Wireless Charge: Qi compatible, 5000 mAh
- Fast Charging: 0–70% in 45 minutes
- Hot Swap: Yes — zero downtime
Ruggedness & Environment
- Drop: 8 ft. to concrete (9 ft. with rugged boot); exceeds MIL-STD-810H
- Sealing: IP68 and IP65 (IEC 60529)
- Tumble: 2000 x 1.6 ft. standard; 2000 x 3.3 ft. with rugged boot
- Operating Temp: -4°F to +122°F (-20°C to +50°C)
- Storage Temp: -40°F to +158°F (-40°C to +70°C)
- Humidity: 5%–95% non-condensing
- ESD: ±20 kV air / ±8 kV direct / ±10 kV indirect
- Thermal Shock Tested: Yes
Environmental Compliance
- RoHS Directive 2011/65/EU; REACH SVHC 1907/2006; EPEAT Gold Certified
The Zebra TC22R is a lightweight, all-in-one mobile computer with integrated UHF RFID and barcode scanning, engineered to simplify inventory management and asset tracking. Built on Android and powered by Zebra’s field-proven technology, it combines exceptional performance with ergonomic design, ensuring fatigue-free all-day use.
With read rates up to 1,300 tags per second and a read range of up to 12.2 m, the TC22R delivers enterprise-grade speed and accuracy in a compact form factor. It features Wi-Fi 6E and Bluetooth 5.2 connectivity, enabling seamless integration across your network for real-time visibility. Ideal for retail, light manufacturing, logistics, and government operations, the TC22R redefines productivity through durability, connectivity, and comfort.
Performance & System
- Processor: 5430 hexa-core, 2.1 GHz
- Operating System: Android (Zebra supported versions)
- Memory: 6 GB RAM / 64 GB Flash
- Battery: 7,000 mAh Li-Ion PowerPrecision+ (removable, quick-release)
- User Interface: 6.0” FHD+ (1080 × 2160), LED backlight, 450 nits brightness
- Touch Input: Bare or gloved finger operation
- Dimensions: 14.5 × 8.4 × 17.7 cm (5.7” × 3.3” × 6.96”)
- Weight: 569 g (20.07 oz.)
RFID Performance
- Standards: EPC Class 1 Gen 2 / Gen 2 v2
- Engine: Zebra Proprietary Radio Technology
- Read Rate: Up to 1,300 tags/sec
- Read Range: Up to 12.2 m (40 ft.)
- Frequency Range:
- US: 902–928 MHz (0–36 dBm EIRP)
- EU: 865–868 MHz (0–33 dBm ERP)
- Japan: 916–921 MHz (LBT, 0–36 dBm EIRP)
- Antenna Gain: 4 dBi integrated antenna
Data Capture & Connectivity
- Barcode Scanner: SE4710 1D/2D engine
- Camera: 16 MP rear with flash; 5 MP front
- NFC: ISO 14443 A/B, Mifare, FeliCa, ISO 15693, HCE support
- Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6E certified)
- Bluetooth: v5.2 Class 2
- USB: 3.1 Type-C (host/client)
Environmental & Durability
- Operating Temperature: -10 °C to +50 °C
- Storage Temperature: -40 °C to +70 °C
- Humidity: 5–95% (non-condensing)
- Drop Spec: 1.5 m (5 ft.) to concrete
- Tumble Spec: 500 cycles (0.5 m tumbles)
- Sealing: IP65
- ESD: ±15 kV air, ±8 kV contact
Certifications & Compliance
- Wi-Fi Alliance: Wi-Fi 6E, WPA2/WPA3, Voice-Enterprise, Passpoint
- EMC: FCC Part 15 Class B, EN 55032, EN 55035
- Safety: IEC/UL 62368-1
- Environmental: RoHS compliant
The MOBILE RFID GLOVE C9 RED is a powerful and revolutionary wearable device designed for rugged mobile RFID computing. It is equipped with the new generation Impinj E310 reader chip, allowing it to read up to 200 tags per second. This device is perfect for industry 4.0 and IoT applications in demanding environments. With its IP65 housing, it can capture and extract data in extreme and remote environments. The GLOVE C9 RED is suitable for various industrial and retail applications such as logistics, construction, inventory management, and maintenance.
It offers a reading range of approximately 5 to 20 cm and supports the EPC GEN2 (ISO 18000-6C) tag standard for the RFID UHF frequency. With its Bluetooth and Wi-Fi connectivity, it provides seamless data transfer to connected systems. The GLOVE C9 RED comes with an extensive range of documentation, a configuration tool, and warranty extensions to support your business applications effectively.
- UHF Reader
- New Generation Impinj E310 IC
- 1500 mAh Li-Ion Battery
- Bluetooth | WiFi
- Reading Range: 5-20 cm
- Supports EPC GEN2 (ISO 18000-63)
- LED Indicator Lights
- Ergonomic Design
- Three Sizes (S, M, L)
- SDK Included

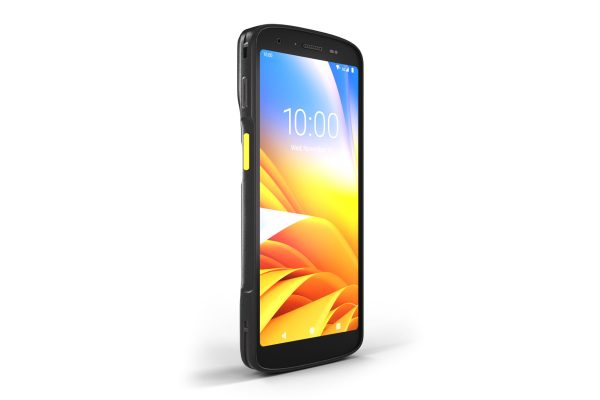

The TC22/TC27 mobile computers are the ultimate cost-effective tools for small to mid-sized businesses, offering a perfect blend of smartphone styling and enterprise-grade features. Powered by a next-generation processor, these devices ensure superior performance across all your apps. With 5G, Wi-Fi 6/6E, and Bluetooth 5.2, they deliver unmatched wireless capabilities, ensuring optimal voice and data performance indoors and outdoors. The 6inch FHD+ display provides clear visibility in any environment, while the enterprise-class scanning options drastically reduce the time and effort needed for barcode capture. Built to endure harsh conditions, these devices are waterproof, dustproof, and drop-proof. The TC22/TC27 also supports contactless transactions, making them versatile for various business applications. Their ergonomic design ensures all-day comfort, and with a range of purpose-built accessories, they can be customized to meet specific job needs.
- Display: 6.0inch FHD+ (1080 x 2160), 450 nits brightness, Corning® Gorilla® Glass
- Processor: Qualcomm® 5430 hex-core, 2.1 GHz
- Operating System: Upgradeable to Android 16
- Memory: 6 GB RAM/64 GB Flash or 8 GB RAM/128 GB Flash
- Battery: Standard 3800 mAh or Extended 5200 mAh, removable
- Cameras: Rear 16 MP, Front 5 MP
- Scanning: SE55 1D/2D Advanced Range, SE4710 1D/2D Scan Engine
- Wireless: 5G, Wi-Fi 6E, Bluetooth 5.2, NFC
- Durability: IP68 and IP65, MIL-STD-810H
- Sensors: Proximity, Magnetometer, Pressure, Light, Motion
- Audio: Dual microphones, dual speakers, HD Voice, PTT support
- Expansion: MicroSD card up to 2 TB
- Ports: USB 3.1 Type C, 2-pin/8-pin rear connector
- Dimensions: 6.5 in. L x 3.0 in. W x 0.49 in. D (165 mm L x 76.3 mm W x 12.5 mm D)
- Weight: 8.32 oz/236 g (TC22 with 3800mAh battery)
- Environmental Compliance: RoHS, REACH

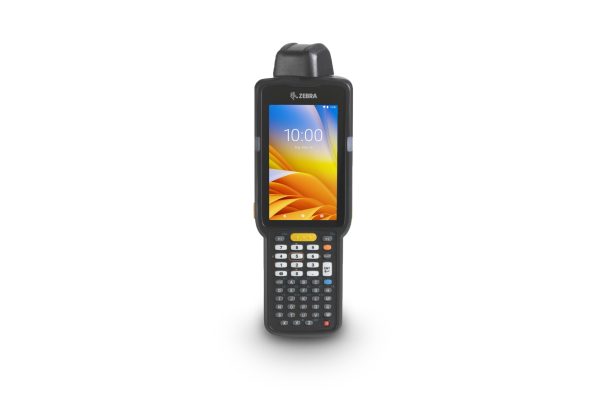

The Zebra MC3300x Mobile Computer is the next evolution of the highly successful MC3000 series, designed to tackle the increasing demands of today’s on-demand, e-commerce-driven economy. Combining a proven ergonomic design with the latest Android architecture, the MC3300x offers superior data capture capabilities, an extended range scanning option, and a robust 7000 mAh battery for power across multiple shifts. Its rugged build, featuring Gorilla Glass and IP64 dustproof sealing, ensures durability. Whether on the manufacturing floor or in a warehouse, the MC3300x enhances workforce productivity with its versatile touch and keypad input options.
- Processor: 2.2 GHz octa-core Qualcomm Snapdragon 660
- Memory: 4 GB RAM, 32 GB Flash (Worldwide); 4 GB RAM, 16 GB Flash (China)
- Operating System: Android 10, upgradable to Android 12
- Battery: 7000 mAh PowerPrecision+ battery with hot swap support
- Display: 4inch WVGA (800 x 480), LED backlight
- Connectivity: Wi-Fi (802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc), Bluetooth 5.0
- Drop: Specification: Multiple 6 ft. drops to concrete across operating temperature range
- Tumble Specification: 3,000 3.3 ft. tumbles
- Sealing: IP64 dustproof sealing
- Scanning Options: SE965 1D, SE4720/SE4770 2D, SE4850 extended range
- Camera: Optional 13 MP rear-facing color camera with LED flash
- Dimensions: Various configurations (e.g., 7.96 in. L x 2.94 in. W x 35 in. D for the 0 scan model)
- Weight: From 15.7 oz. (Straight Shooter) to 18.4 oz. (Gun/Pistol)
